Round Corner Door Track Hardware

Round Corner Door Hardware

System Overview

Vater Hardware’s round corner door track hardware is designed for sliding doors with curved track for doors up to 100kg, useful for doors or walls that need to slide away. This system is distributed by Elraco Distributors and represents a specialized solution for applications requiring doors to navigate around corners.

Technical Specifications

Door Capacity Limits: Maximum per door leaf: Height 6000mm, Width 900mm, Thickness 45-55mm, Weight 80kg

System Components

Track System:

  • Curved galvanized steel track sections with 600mm radius Link here
  • Standard straight track sections for connecting curved sections Link here
  • Maximum load rating of 200kg for the track system

Rollers: Compatible with ELED14S or ELED7LP rollers (DOES NOT WORK WITH ELED12LP)

  • Various roller configurations available including 2-wheel double rollers
  • Specialized rollers designed for curved track operation Link here

Supporting Hardware:

  • Brackets to support and fix tracks to walls
  • Door guides for proper door alignment
  • Floor guide channels for bottom guidance
  • Installation Requirements & Recommendations

    Installation Guidelines: For best results using the round corner door track hardware, a maximum of eight door leaves should be used in any one unit For Face-Fix (side-fix) installations, a packing batten may be required to provide adequate operating clearance between door leaves and main structure Floor guide channels must be installed with centres in exact alignment with centre of top track The top track must be level, and support brackets spaced at maximum 900mm centres must be securely fixed

    Critical Maintenance & Usage Guidelines

    DO NOT:
    DO NOT grease tracks. Grease will trap dirt and wear down all components. Image Link here
    DO NOT weld tracks as it causes distortion and reduces capacity.
    DO NOT exceed recommended maximum door leaf dimensions.

    Recommendations: ALL End Support Carriages should be Four Wheel models

    Applications

    This system is particularly suitable for:

  • Industrial shed doors that need to slide around building corners
  • Warehouse applications with space constraints
  • Agricultural implement storage facilities
  • Any application where doors need to follow a curved path rather than straight sliding
  • The system is available through Elraco Distributors and represents Vater Hardware’s solution for complex sliding door applications where standard straight-track systems cannot accommodate the required door movement patterns. Responsive SVG Map

    Click on any section of the image below to learn more about each wheel type.

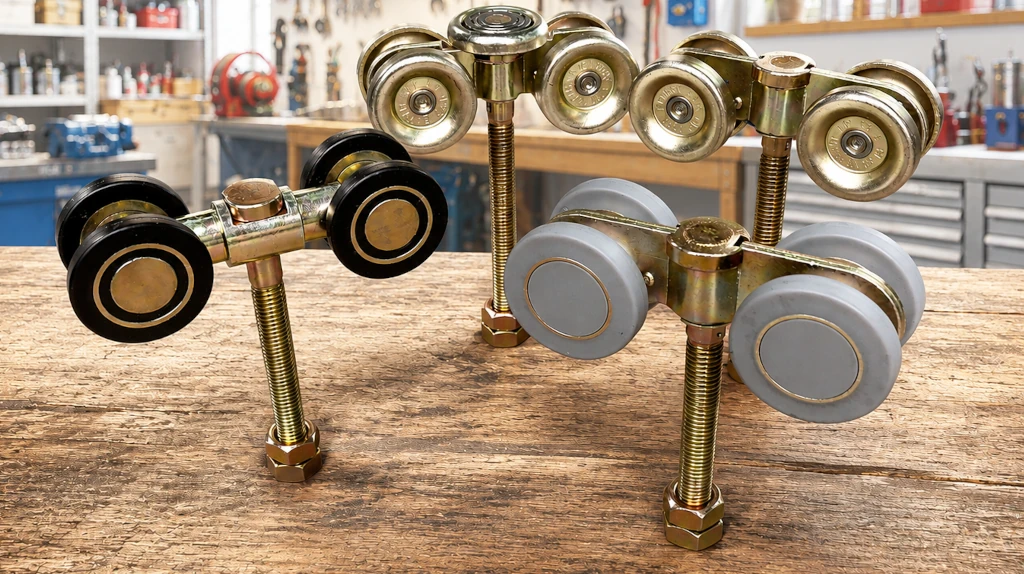

    Eltrak Steel Wheeled Sliding Door Rollers

    Steel wheels are the real deal. Performance, reliability, and longevity.

    Designed and manufactured by Eltrak for demanding sliding door applications, these heavy-duty rollers are ideal for use in agricultural, industrial, and commercial settings. Whether you’re building new infrastructure or replacing worn-out components, Eltrak rollers provide the durability and ease-of-operation you need.

    The following are clickable links to four different load classes
    Light Doors to 120kg
    Heavier Doors to 200kg
    Industrial Weight Doors to 450kg
    Extreme Duty Doors to 650kg
