Description

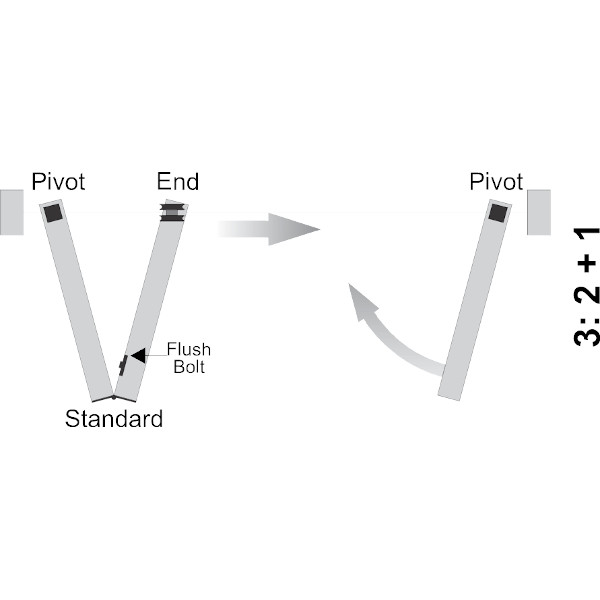

AllWeather Exterior Bi-Fold door kit. Three Doors, two going one way and one hinged to the door frame.
MAWE321
This is a guide only for the bi-fold components, track, guide channel and perimeter seal
Sizing is based on standard 2040x820mm doors.
Some variations occur for taller and wider doors.
Perimeter Seal (m): 24.1
Kit Includes:
2 x Top & Bottom Pivot Set – Universal. Code with link: (COWAW883SS)
1 x End Hanger Wheel & Guide set – Universal. Code with link: (COWAW885SS)
1 x Standard D Handle Hinge Set. Code with link: (COWAW483SS)
1 x Aluminium Track 3.0m Length. Code with link: (COWAW82062)
24.076 x Metres length Perimeter Seal Q-21 . Code with link: (COWAW80800)
1 x Aluminium 3.0m guide channel . Code with link: (COWTT84762)
1 x Black PVC insert 3.0m. Code with link: COWTT84618
1 x Flush Bolt C4 Locking 210mm Round Top. Code with link: (COWTT735SN)
1 x Flush Bolt Non-Locking 210mm Round Top. Code with link: (COWTT736SN)
- Complete adjustment capabilities at every hanger and pivot point including a unique lateral adjustment top pivot.
- Stainless steel top hinge roller assembly for strength & corrosion resistance.
- Heavy duty rollers made of engineering polymer for smooth operation.
- D pull stainless steel hinge for easy operation.
- Stainless steel roller guide for added strength & corrosion resistance.
- Flush bolts available in locking & non-locking.
- Main lock single point French door lock with a range of lever designs by single or double leaf.
- Rubber stopper for anti crash of hanger.
- Can carry panel load up to 90kg.
Click here to download the All Weather brochure
