Description
Bifold Door Hardware Set for 4 Doors. 25kg
1830mm Track

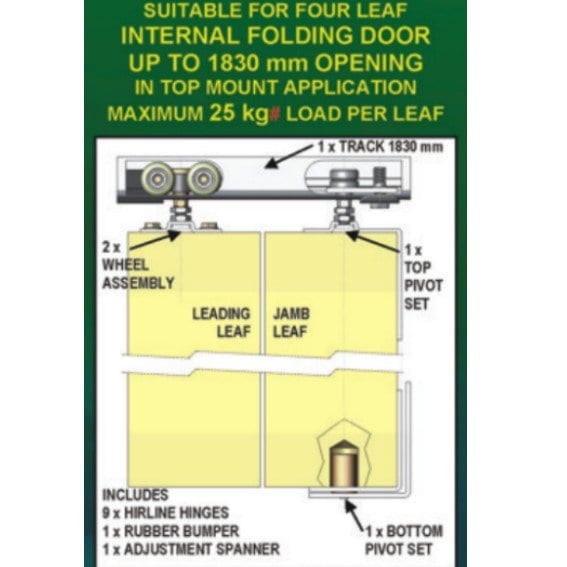

Folding Leaf Four Door Set One way. 1830mm Mill Finish -Cowdroy P36030
Maximum load 25kg Suitable for: Internal doors for domestic and commercial use
Maximum of 6 leaves in any single run
Maximum load 18kg per leaf end pivoted or 25kg centre pivoted
Thrust bearing on jamb door pivot ensures ease of operation High strength height adjusting pivot
Optional side or end fix brackets
Nylon tyred 4 wheel carriages with lubricated steel ball bearings sealed for maintenance free, smooth operation
Aluminium wrap-around track
Wheels can not jump off the track
Quiet and smooth running
Triumph is a high quality door track system, suitable for folding doors up to 18kg* in weight.
The slimline, enclosed track design improves safety by ensuring the wheels cannot jump out of the track and is available in a range of sizes.
Triumph features quality 4-wheel carriages, incorporating fully sealed ZZ ball bearings, nylon tyres and a quick-release mechanism, for faster installation.
Adding on the robust pivot sets allow for multiple-panel applications.
Ideally suited for 2-4 doors in one direction, Triumph may also be used for up to 8 doors when used with a bottom guide system.
*Weight can be increased to 25kg per panel if centre-pivoted.
