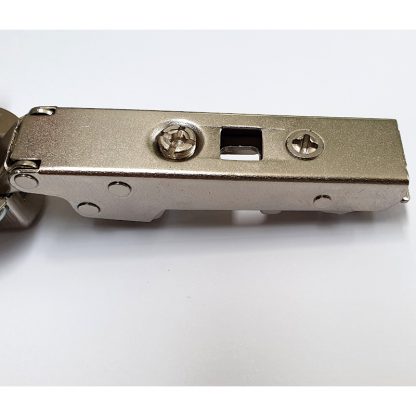

Concealed Hinge Full Overlay. Clip On

$2.20

Concealed Hinge Full Overlay. Clip On

45mm Hole Centres.
Standard Mounting Plates is the H73P2S. Ordered separately

Quantity buy pricing.

Quantity Price
1 - 149 $2.20
150+ $1.98
$0.80

Description

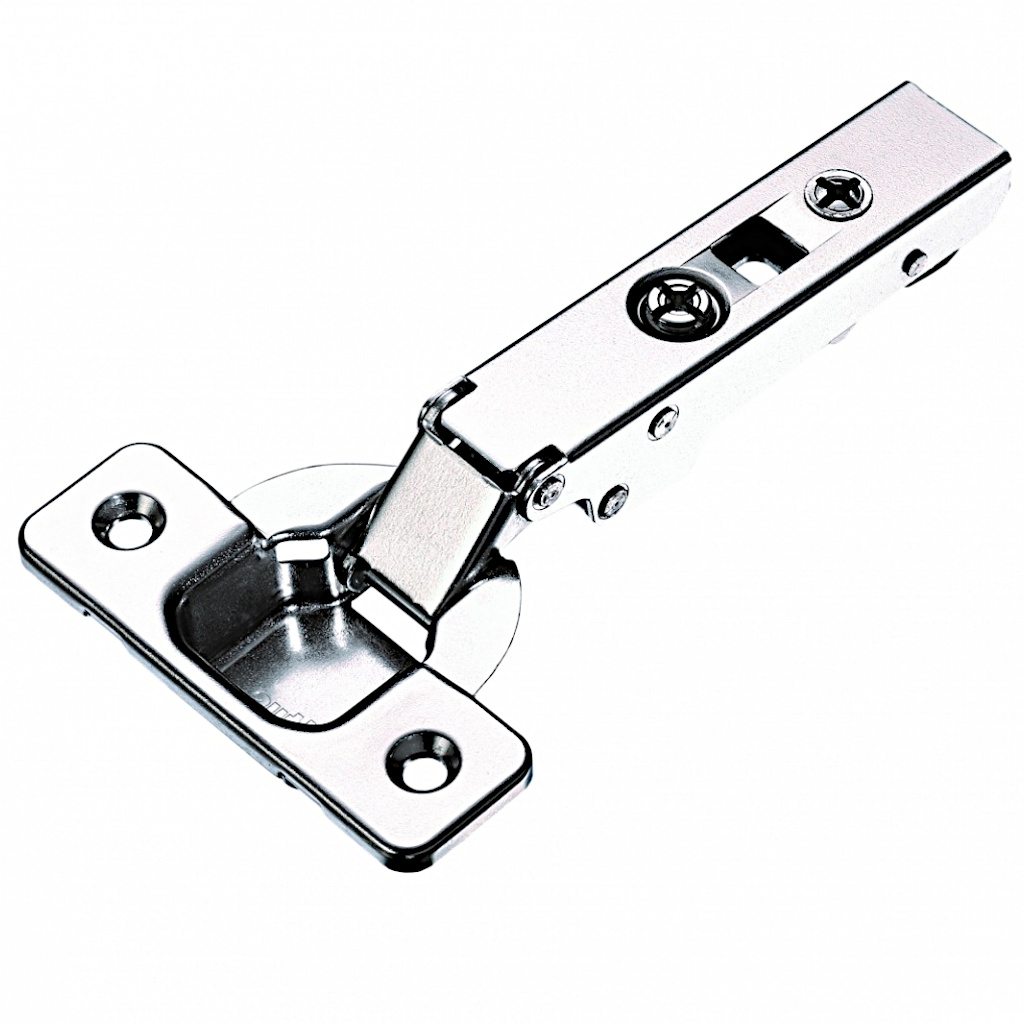

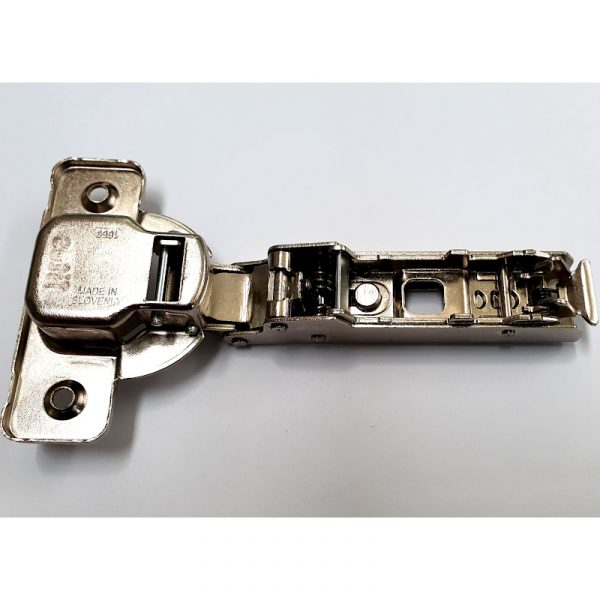

Titus CLIP-ON 110 degree Hinge

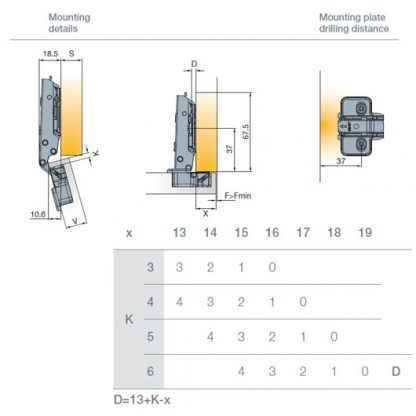

45mm Hole Centres
The hinge is fastened to the door with screws. Usually 3.5 x16mm (6g x 5/8)

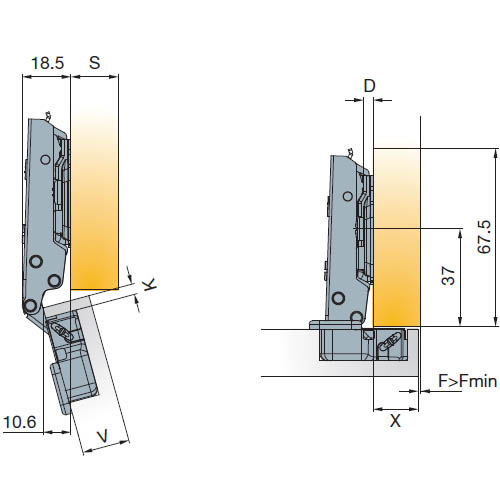

Depth adjustment: +1.5 / -1.5 mm
Drilling depth (mm): 11.5 mm
Hinge cup diameter: 35 mm
Height adjustment: +2 / -2 mm
Mounting: Snap-on
Material: Steel
Side adjustment: +3 / -1 mm
Opening angle (°): 110
Standard Mounting Plates is the H73P2S. Ordered separately
Link to OEM webpage
Link to Mounting Plate Page.

Additional information

Weight0.05 kg
Dimensions120 × 60 × 20 mm
Colour

Form
