Corner Cupboard Storage Hardware from Kessebohmer. The very best quality storage solutions as well as the most innovative products to make use of a typically difficult cabinet.
Kessebohmer Corner Cupboard Storage Solutions: LeMans Corner Unit Overview (Metric Dimensions)

Kessebohmer has established itself as a leader in innovative kitchen storage solutions, with their LeMans corner unit system standing out as a particularly clever answer to one of the most challenging spaces in any kitchen: the corner cabinet.

The Corner Cupboard Storage Hardware Challenge

Corner cabinets have traditionally been problematic spaces in kitchen design, often becoming “dead corners” where items get lost in hard-to-reach depths. Kessebohmer’s LeMans system increases the actual storage area by up to 70% compared to cabinets with standard pull-outs next to these corner spaces

---

How the LeMans System Works

The LeMans corner unit operates on an ingenious dual-motion mechanism. Through a combination of turning and rotating movements, either the upper or lower shelf first turns forwards and then rotates fully out of the unit after the door is opened.

Key Features and Benefits

Flexibility and Adjustability: The LeMans system is remarkably adaptable. The adjustable height creates the optimal storage space for any high-sided pan and ensures everything is always within easy reach, providing such flexibility that even a drawer can be installed above the unit for perfectly optimized corner usage. Shelves are height adjustable at intervals of 50mm via post and side profile .

Corner Cupboard Storage Hardware

Independent Shelf Operation: Each shelf operates independently, allowing you to access items on one level without disturbing the contents of the other. This is particularly useful when you need frequent access to certain items while keeping others safely stored.

Load Capacity: Each individual shelf can easily carry up to 25kg , making the system suitable for heavy pots, pans, small appliances, and other substantial kitchen items.

Soft-Close Technology: Available with an optional self-closing mechanism, the LeMans features cushioned, near-silent operation. This can be retrofitted at any time, adding convenience and protecting both the unit and your stored items.

Lighting: Some models include stylish ambient lighting with soft illumination, making it easier to see stored items even in deeper cabinet spaces.

Cabinet Requirements and Dimensions

The LeMans corner base cabinet requires a clear cabinet height of 650-800mm, a clear cabinet depth of minimum 500mm, and a door width of 400, 450, 500 or 600mm

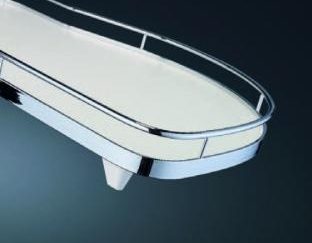

The LeMans II is available in several configurations based on tray size:

• Series 40: 305mm (12-inch) trays – Minimum cabinet opening 362mm wide × 546mm high
• Series 45: 381mm (15-inch) trays – Minimum cabinet opening 419mm wide × 533mm high
• Series 50: 457mm (18-inch) trays – Minimum cabinet opening 451mm wide × 546mm high
• Series 60: 533mm (21-inch) trays – Minimum cabinet opening 540mm wide × 546mm high

Each series is designed to fit different cabinet sizes and can be configured for either left-hand or right-hand swing, depending on your door hinge placement. The system requires only an 85-degree door opening for shelves to fully extend, making it suitable for most kitchen layouts.

Installation and Customization

The system is designed for relatively straightforward installation, with included templates and gauges for quick and accurate fitting. It includes the shelves, four-arm support system, adjustable post, soft-close mechanism, hardware, and installation template. The adjustable post makes it suitable for both full-height door applications and cabinets with a drawer on top.

The LeMans system is available in various finishes, including chrome, champagne, anthracite, grey, and white, with shelves typically in maple or white finishes to complement different kitchen aesthetics.
