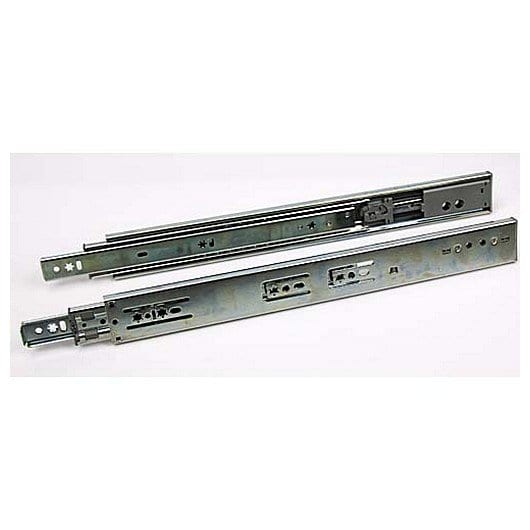

Drawer Slide Soft Close. Sizes 300 to 700mm

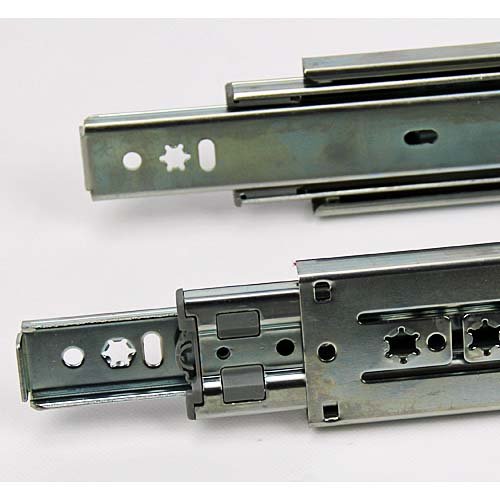

Drawer Slide Soft Close. Sizes 300 to 600mm - Image 2

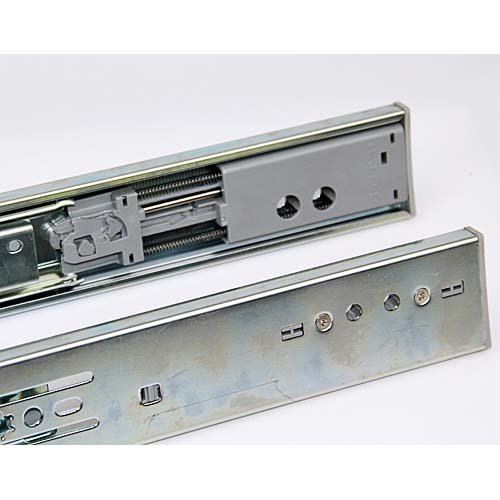

Drawer Slide Soft Close. Sizes 300 to 600mm - Image 3
Drawer Slide Soft Close. Sizes 300 to 600mm - Image 4
Drawer Slide Soft Close. Sizes 300 to 600mm - Image 5

Drawer Slide Soft Close. Sizes 300 to 600mm

$28.80 – $38.81

Drawer Slide Soft Close

Side Mounted
Sizes 300 to 600mm

SKU: RDFSCZ-V Category: Tag:

Description

Side Mounted
Zinc Plate Finish
Lengths from 300mm to 600mm
SOFT CLOSE ACTION (LAST 30mm OF THE STROKE)
BALL BEARING RACE 40Kg RATED
PRICE PER SET (ONE DRAWER)

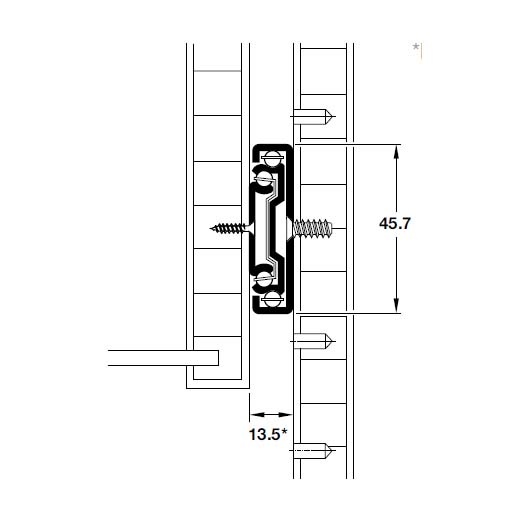

13.5mm CLEARANCE NEEDED BETWEEN DRAWER AND CARCASE
Full Extension loss due to Soft close mechanism
Drawer Slide Soft Close. Sizes 300 to 600mm | Elraco



Additional information

Weight N/A
Dimensions N/A
Length

, , , , , , , ,

Colour

Mechanism

Form

Brand
