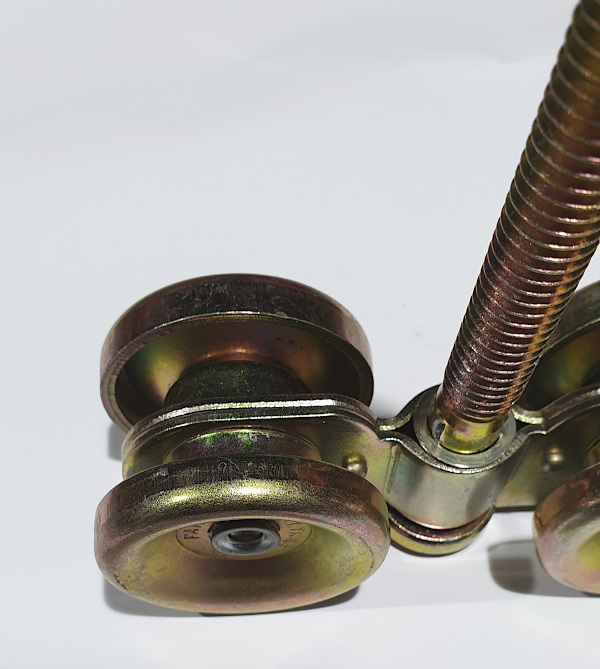

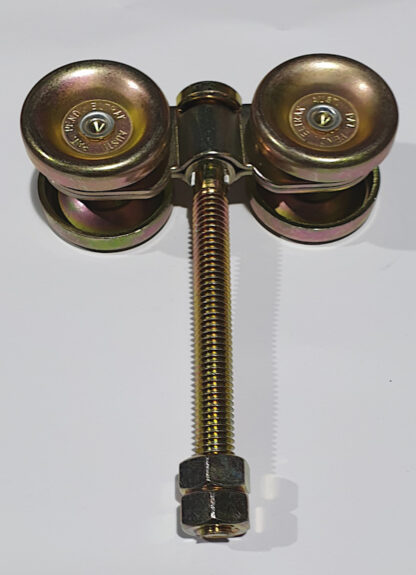

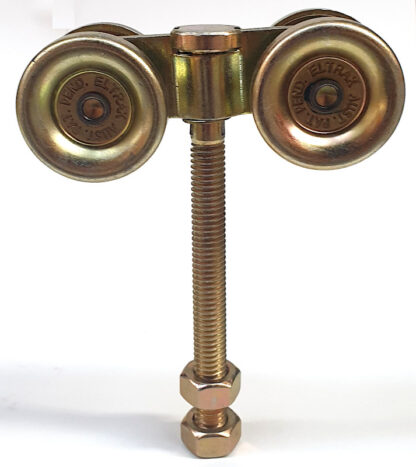

Eltrak EH12LP Four Steel Wheel Carriage – For Doors up to 450 kg
Overview
Engineered for high-duty top-hung sliding door systems, the Eltrak EH12LP Four Steel Wheel Carriage from Eltrak provides robust support for heavy doors up to 450 kg. Ideal for large industrial or implement-shed applications, this four-steel-wheel design offers smooth movement, heavy-duty durability and ease of installation.
Key Features & Benefits
-
High Load Capacity: Rated for sliding doors up to 450 kg, making it suitable for medium-to-heavy industrial sliding door systems.
-

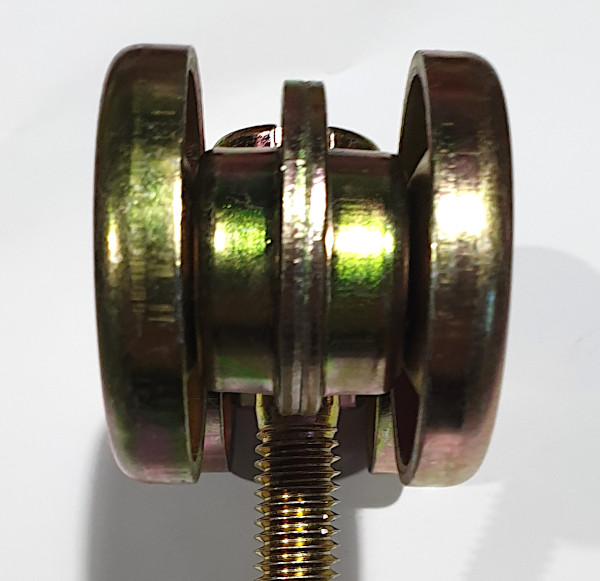

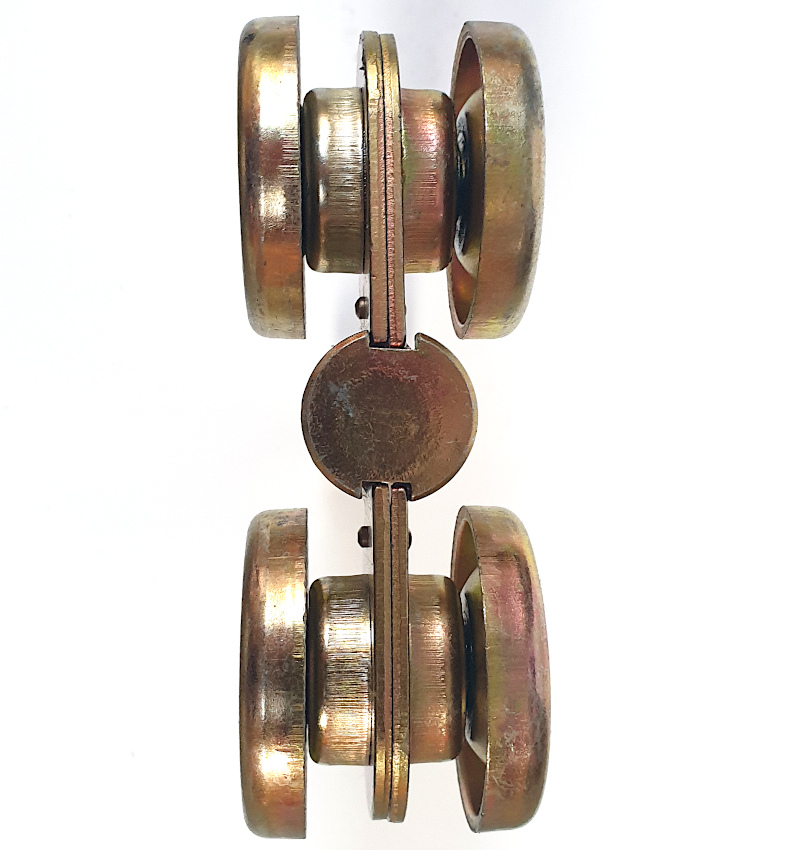

Four Steel Wheels: Provides superior load distribution and smooth rolling action across the track, reducing wear and friction over time.
-
Heavy-Duty Needle Bearings & Hardened Thrust Caps: Ensures reliability under load, durability in frequent operation and reduced maintenance.
-
Captured Loose Pin Construction: Simplifies installation and servicing by using a loose-pin mounting method while retaining the carriage securely.
-

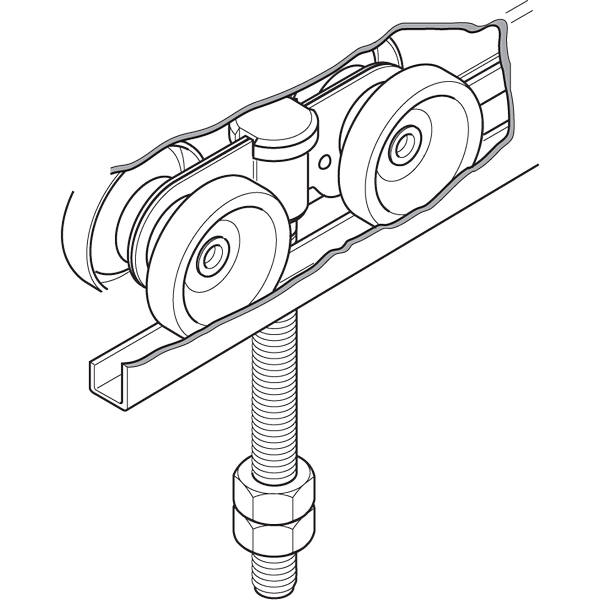

Compatibility with 450 kg Series Track Systems: Designed to integrate with Eltrak’s 450 kg load-rated track and hardware.
Typical Applications
-
Large warehouse sliding doors
-
Industrial plant overhead sliding doors
-
Implement sheds or agricultural sliding doors
-
Any sliding door assembly where a 450 kg weight class carriage is required for long-term, heavy-use operation

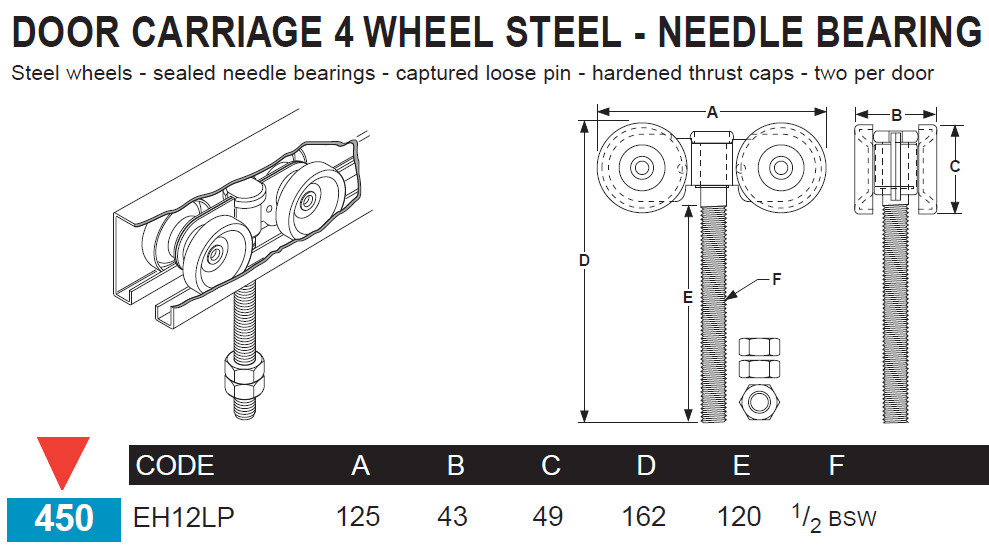

Technical Specifications (verify with supplier)
-
Model: EH12LP
-
Load rating: Up to 450 kg (for compatible track system)
-
Construction: Steel wheels on needle bearings, captive loose-pin design, hardened thrust caps
-
Quantity: Typically 2 carriages required per door to ensure stable support.
-
Thread mount: ½″ BSW (for certain configurations)
-
Finish: Galvanised steel or equivalent heavy-duty finish suitable for industrial use.
Why Choose the EH12LP?
When you’re specifying a sliding door system with significant weight and frequent use, every component matters. The EH12LP carriage offers a combination of high load capacity, rugged construction and proven performance. By selecting this carriage, you’re choosing hardware designed for long-life service in demanding environments — supporting smooth operation, reducing downtime and minimizing maintenance.
Installation & Maintenance Tips
-
Ensure the track system (beam, header, supports) is engineered to accommodate both the carriage and full door load.
-
Use two carriages (minimum) per door to evenly distribute load and maintain smooth travel.
-
Align track carefully before installing door — misalignment can lead to excessive wear on wheels or bearings.
-
Periodically inspect wheels, bearings, and thrust caps for signs of wear or damage, especially in heavy-use or exposed environments.
-
In corrosive or dust-laden environments (e.g., agricultural, coastal, chemical), consider additional protection (e.g., stainless fixings or protective coatings) to extend service life.
2 Per Door Required
