Description

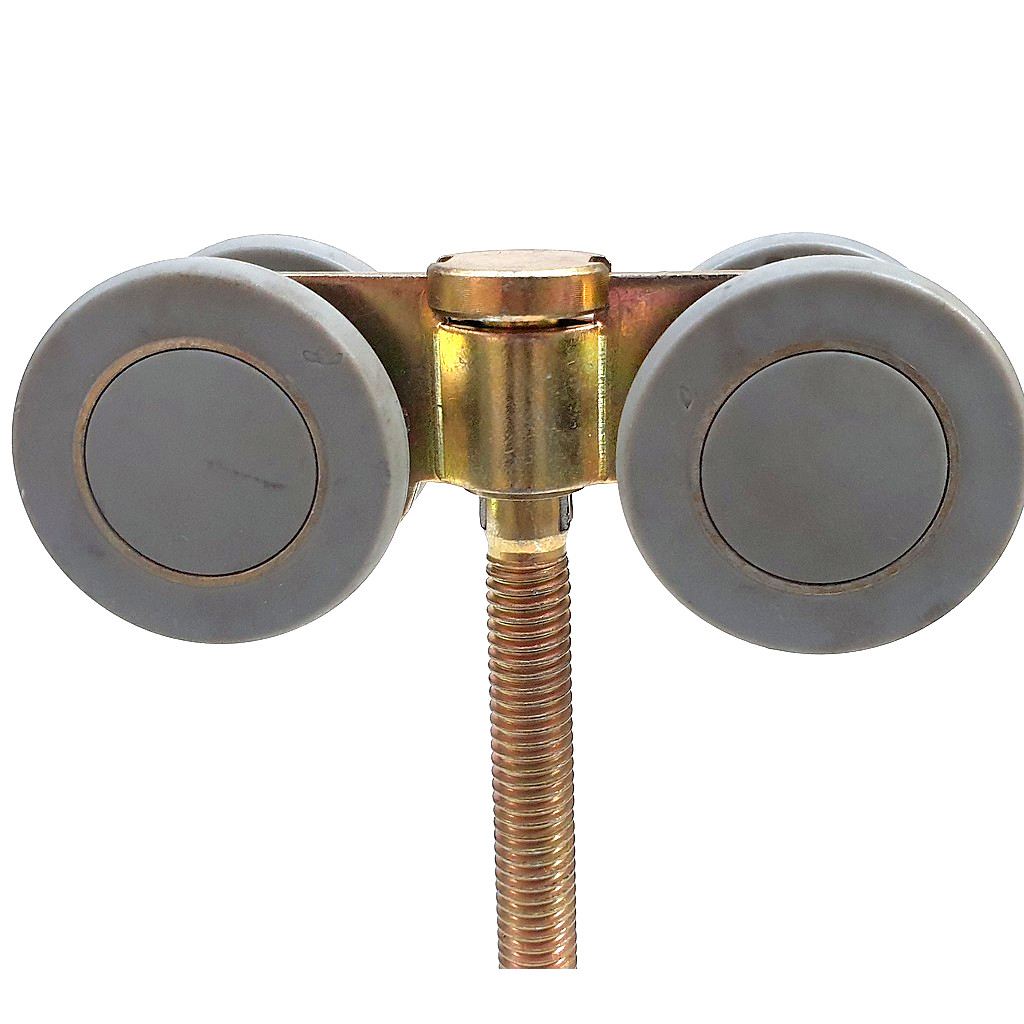

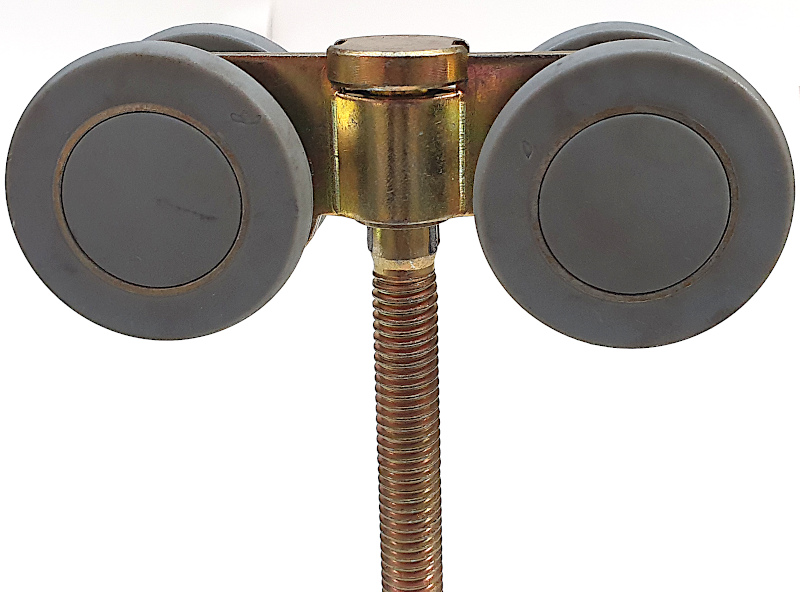

Eltrak EH13LP Four Wheel Swivel Carriage for Sliding Doors up to 450kg
Key Features
Robust Load Capacity
- Supports sliding doors up to 450kg
- Compatible with both 450kg and 650kg track systems
- Professional-grade construction for demanding applications

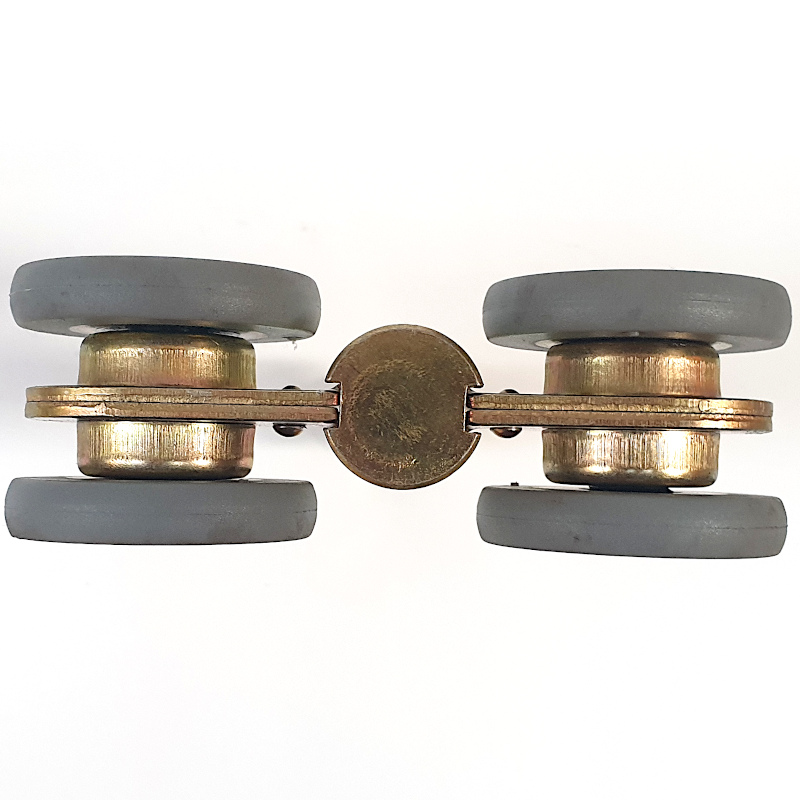

Advanced Four-Wheel Design
- Four precision nylon tyres for superior load distribution
- Single tyre width: 10mm for optimal track contact
- Swivel carriage design accommodates door movement and alignment
- Enhanced stability compared to two-wheel systems
Premium Bearing System
- Ball bearing race construction for smooth, silent operation
- Precision-engineered for long service life
- Minimal maintenance requirements
- Effortless door movement even under full load

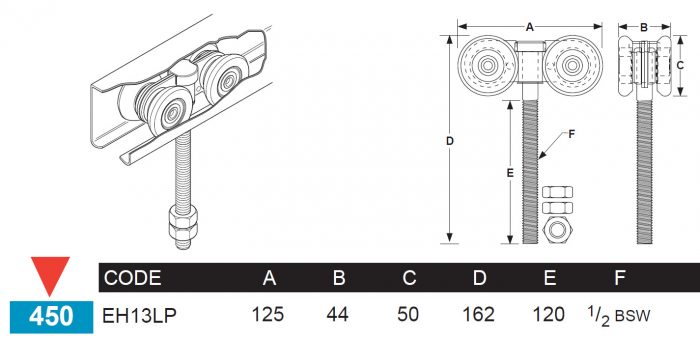

Professional Specifications
- Thread: 1/2BSW x 120mm long
- Captured loose pin design for secure installation
- Side thrust resistance for improved door stability
- Dimensions: 162mm x 125mm
Why Choose Eltrak EH13LP?
This roller combines proven engineering with practical design features that deliver reliable performance in demanding environments. The four-wheel configuration provides superior stability and load distribution, while the nylon tyres ensure quiet operation and long service life.
Backed by Elraco Distributors’ commitment to quality hardware solutions, the EH13LP delivers the professional-grade performance required for commercial and industrial sliding door applications.
Quality Assurance
Manufactured to exacting standards, each EH13LP roller undergoes rigorous quality control to ensure consistent performance and reliability. The precision ball bearing system and durable nylon tyres are designed to provide years of trouble-free operation.
Complete technical specifications and installation guidelines available upon request.
