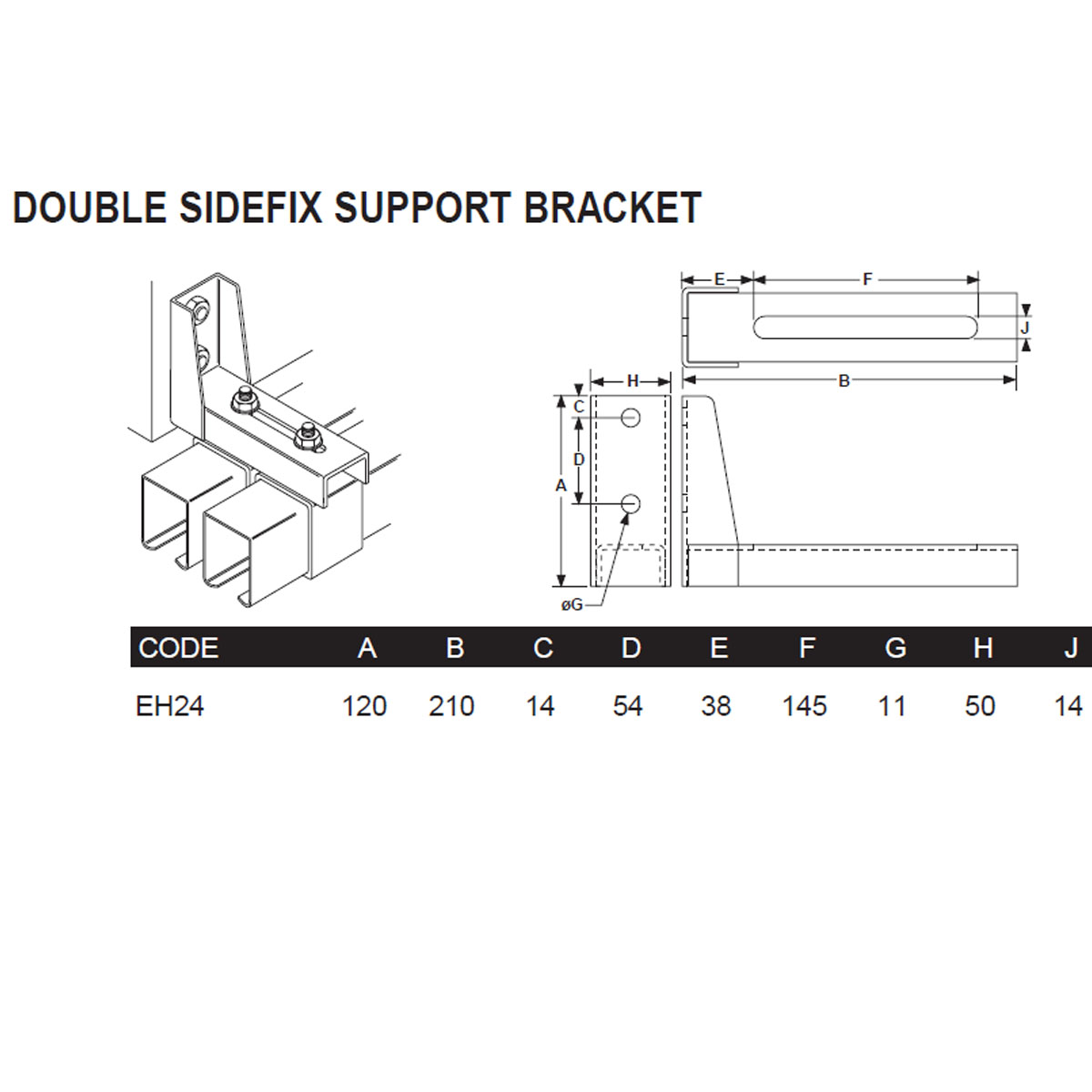

Eltrak EH24 Double Overhead Support Bracket – 650 kg Capacity
Overview
Designed specifically for heavy industrial sliding door systems, the Eltrak EH24 Double Overhead Support Bracket delivers outstanding strength, reliability and stability. Engineered to support loads up to 650 kg, it is a dependable component for the Matador & Hercules Series by Eltrak.
Key Features & Benefits
-
High Load Capacity: Rated for sliding door systems up to 650 kg, making it suitable for large commercial or industrial doors.
-
Double Overhead Configuration: Designed to provide robust overhead support with dual points of attachment, enhancing the stability of heavy tracks.
-
Heavy-Duty Construction: Built from galvanised steel (or equivalent heavy-duty finish) to withstand industrial environments, reducing corrosion and wear.
-
Compatibility: Ideal for use with Eltrak’s Matador and Hercules series tracks (heavy-duty industrial series) for sliding door.
-
Simplified Installation: Pre-engineered for bolt-on or weld-on applications, designed to integrate seamlessly into overhead track systems.
-
Reliable Brand: Backed by Eltrak’s reputation in industrial sliding door hardware—trusted for heavy duty, long-life performance.
Typical Applications
-
Large warehouse sliding doors
-
Factory/plant overhead sliding doors
-
Aircraft hangar doors and implement shed doors
-
Commercial sliding doors where heavy loads are present
-
Any set-up requiring a robust overhead support bracket compatible with heavy-duty track systems
Technical Specifications (please confirm with supplier for installation)
-
Model: EH24
-
Load Capacity: Up to 650 kg (Hercules/Matador series)
-
Finish: Galvanised (industrial-grade)
-
Designed for use in overhead track mounting (double support)
-
Compatibility: Heavy-duty sliding door track systems by Eltrak
Why Choose the EH24?
When you’re dealing with heavy sliding doors, the bracket is one of the most critical components – it must safely carry significant overhead loads, resist corrosion, and maintain alignment of your track for smooth long-term operation. The EH24 is purpose-built for exactly that: heavy industrial use, confidence in load-rating, and compatibility with Eltrak’s proven heavy-duty systems.
Installation & Maintenance Tips
-
Ensure that the mounting surface (beam, purlin or structural support) is capable of supporting the bracket plus the full load of the door assembly.
-
Use appropriate bolts/fasteners or weld fixing as per the structural engineer’s specification.
-
Check alignment of the track prior to door installation—any misalignment can cause premature wear.
-
Periodically inspect the bracket and track mounting hardware to ensure no loosening, corrosion build-up or deformation has occurred.
-
In high-corrosion environments (e.g., marine or chemical plants), consider additional protective coatings or stainless fixings.
