Eltrak Track 450kg Curved. – Galvanised

$330.00

Eltrak Track 450kg Curved. – Galvanised

Track size is 61mm(H) x 50mm(W)
Maximum load 450kg

The following rollers are compatible with this track
Round Corner Door Track Roller. Eltrak EH14M For Round Corner and Bi-Fold application
1 × Round Corner Door Track Roller. Eltrak EH14M. Short Body
$166.00
Round Corner Door Track Roller 2 Wheel. Single.
1 × Round Corner Door Track Roller 2 Wheel. Single.
$89.71
Round Corner Door Track Roller. 2 Wheel Double.
1 × Round Corner Door Track Roller. 2 Wheel Double.
$97.30
Round Corner Door Track Roller. 4 Wheel Double.
1 × Round Corner Door Track Roller. 4 Wheel Double.
$181.39
Round Corner Door Track Roller. 4 Wheel Single.
1 × Round Corner Door Track Roller. 4 Wheel Single.
$171.27
SKU: EL450EH1600R Category: Tag:

Description

To be used with EH7 or  EH14DHN Rollers.

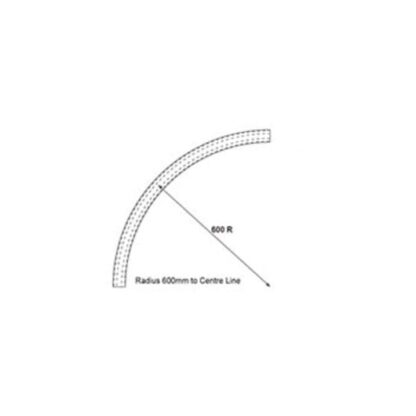

600mm radius curve

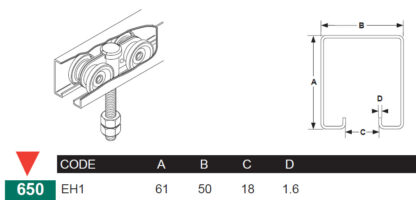

Track size is 61mm(H) x 50mm(W)
Maximum load 450kg

Ideal for “Round Corner Sliding Door” applications. This allows a series of panels to be slid across a facing wall and down a side wall. Sliding doors can be made up of a series of panels no wider than 900mm, and with a preferred maximum of eight panels in the door. Multiple doors (each of eight panels) can be installed.
Please Click Here to download an information PDF.

Eltrak Track 450kg Curved. - Galvanised | Elraco

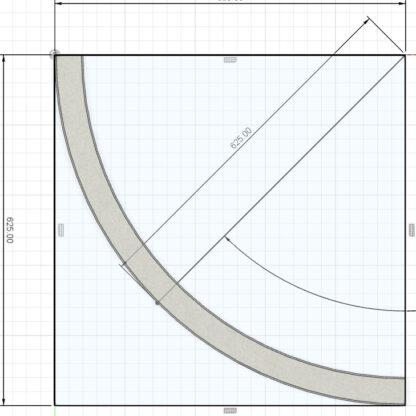

Link to product DWG
Link to straight length

Additional information

Weight 7.65 kg
Dimensions 600 × 135 × 45 mm
Width

Height

Colour

Form

Brand

Range

Capacity
