Framing Components for Sliding Doors product line gives you a true “Build on Site” sliding door solution that just uses self drilling fasteners (Tek screws) and a drill (or impact driver) to build a door frame. Simply add your “Trimdek” sheet facing panels and you have a sturdy, and structurally sound, sliding door that will provide years of service.

All items are made from steel with a very high degree of corrosion resistance built in. We recommend using Class 3 or Class 4 coated fasteners to give you the best long term protection against corrosion on all penetrations or joins.

Please note that the largest door frame that can be built is Six metres tall by Four metres wide.

Frame Components

Brackets and Handle

Door Frame Component Calculator

Please note that the largest door frame that can be built is Six metres tall by Four metres wide.
The following table is to be used as a guide only. Check all measurements and dimensions for accuracy

Sliding Steel Door Frame Calculation Tool
Height in mm Width in mm Qty Required
Order Qty
EF4 Verticals (mm)
EF4 Horizontals (mm)
EB2 Verticals (mm)
EB2 Horizontals (mm)
ELEFC Corner Bracket
ELEFT “T” Bracket
Cladding Length (mm)
Component Weights (kg)
EF4 Verticals
EF4 Horizontals
EB2 Verticals
EB2 Horizontals
Cladding Weight (Trimdek)
ELEFC Brackets
ELEFT Brackets
Total Weight
Responsive SVG Map

Click on any section of the image below to learn more about each wheel type.

Heavy Duty Rollers Heavy Duty Rollers Heavy Duty Track Heavy Duty Brackets Heavy Duty Brackets Heavy Duty Brackets Heavy Duty Brackets

Click here to see a cutaway image of a door

Framing Components for Sliding Doors:
Use the following information will help with calculating component lengths.

TRACK POSITION = Top of Opening to Underside of Door Track: 75mm

DOOR HEIGHT “A”
Underside of door track to floor level less 75mm

DOOR WIDTH “B”
Width of opening plus 30mm (min) for
overlap each end (B+60mm total width
any number of doors on a single track)

EF4 PERIMETER FRAMING
Vertical Members (door sides) = Measurement “A” minus 65mm
Horizontal Members (top & bottom) = Measurement “B” minus 65mm
EB2 BACKING RAIL
Horizontal Cladding Braces = Measurement “B” minus 10mm
Fix at 1800mm (max) spacings when used with 0.49mm Trimdek or similar profile claddings

Carriage Mounting Blocks at least 100mm in length
Fix carriages 500mm (min) to 750mm (max) from door ends (Link to Carriages)
Door Push Rails – optional = approx 1000mm
Cladding Length = A – 70mm

  • Fitting of the Angle Braces at approx 45 degrees will give the correct
    positioning for the Carriage Mounting Blocks.
  • We recommend fitting a full length EB2 Horizontal Brace inserted to the
    bottom EF4 horizontal member to strengthen the bottom of the door frame.
  • Intermediate EB2 Horizontal Braces should be fitted at even spacings
    between top & bottom frame. Doors up to 2.6m high one only; 2.6 to 4.8m
    two braces; doors over 4.8m high minimum three braces.
  • Doors should be no larger that 6 metres tall and 4 metres wide

Click here for more information

Framing Components for Sliding Doors: Building the door using the components

Door framing Components available from Elraco

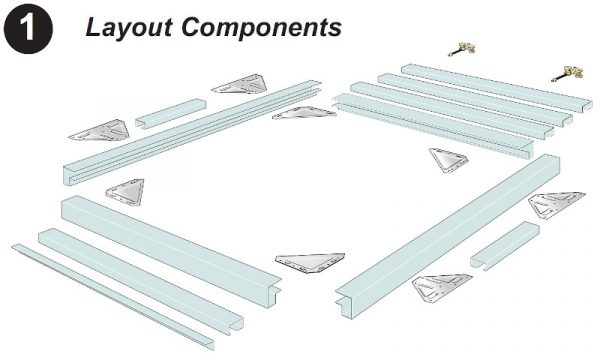

Layout the door framing components ready for assembly as shown above, recessed side down.
Framing Components for Sliding Doors

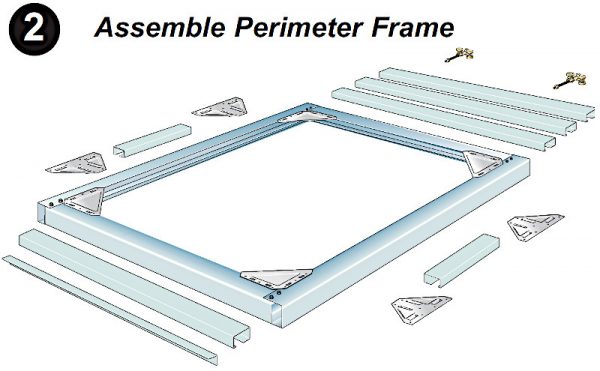

Position the outer frame and slip top and bottom corner braces into place. Check frame height & width, and fasten with one tek screw in each corner. Square diagonals & fix with second tek screw to each corner.
Door framing Components available from Elraco

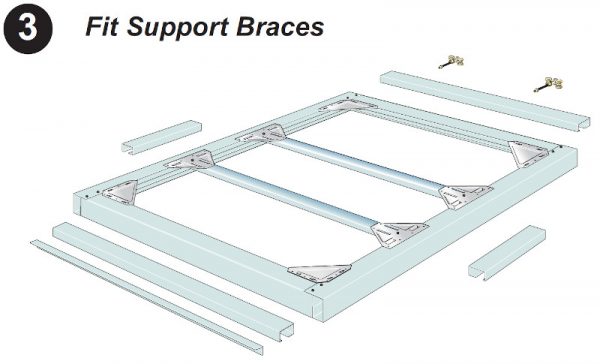

Position the horizontal support rails evenly spaced (maximum 1800mm) apart. Fit tee braces in place and fix with one Tek screw only each.
Door framing Components available from Elraco

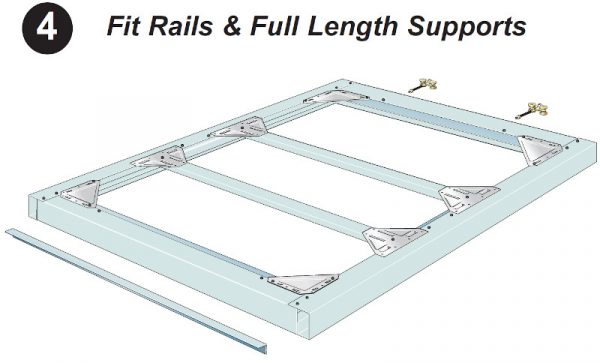

Position vertical push rails as required and fix each with one tek screw only each end. Fit full length top and bottom internal supports in place. Fix the four corner braces with 2 Tek screws only as shown.
Door framing Components available from Elraco

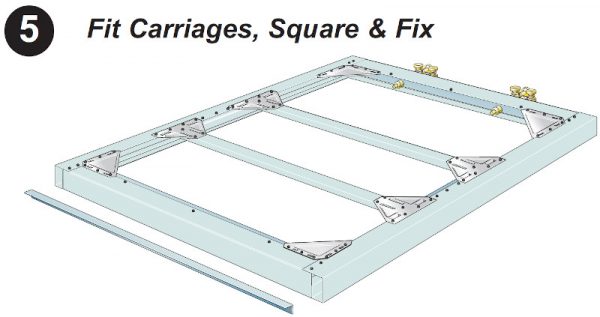

Drill mounting holes centrally in the full length top internal support and fit door carriages. Square all door sides and diagonals. Fix with Tek screws as shown; corner braces first, then tee braces, top and bottom internal supports and vertical push rails.
Door framing Components available from Elraco

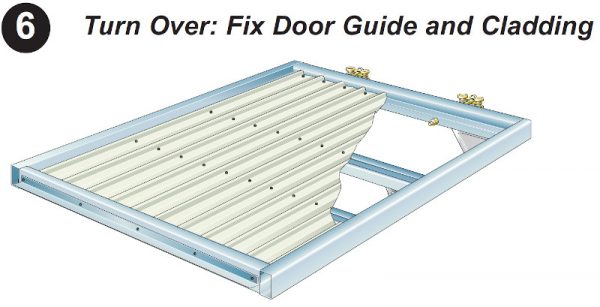

Turn over and check diagonals for square, tek screw each corner of the frame recess. Tek screw angle door guide to bottom door frame – blade in line with centre of carriage bolts. Fit cladding within the frame recess, Tek screw in valley to top and bottom frame & horizontal braces.
