Kesseböhmer LeMans II Right Handed Swivel Corner Storage
Unlock the full potential of your corner base cabinet with the Kesseböhmer LeMans Right Handed Swivel Corner Storage Solution. — engineered to make every inch usable, accessible and elegant. Designed for base cabinets with a right-hand swing door, this corner storage system effortlessly brings the contents forward as the door opens, offering full visibility and convenient access to pans, appliances or lesser-used items.
Key Features
-
Smooth “swing + rotate” mechanism: with one movement the trays extend out in front of the cabinet for optimal reach.
-
High load capacity: each tray is rated to carry up to 25 kg — so cookware, small appliances or bulk items are no problem.
-
Height‐adjustable tray system: the unit adapts to your storage needs; making it ideal for varying pan heights, even installing above drawers.
-

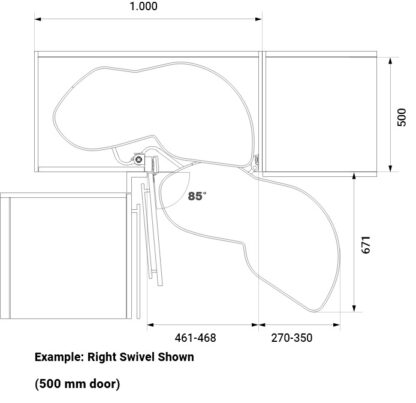

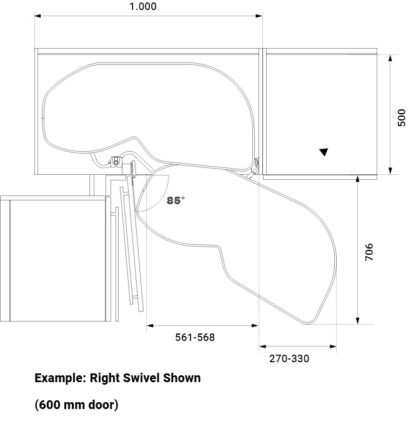

Compact opening requirement: the trays can fully extend with just an 85° door swing, reducing interference with adjacent cabinetry and handles.
-
Tool‐free fine adjustment: the ClickFixx system simplifies installation and allows precision alignment.
Compatible Cabinet Sizes & Door Widths
-
Cabinet internal height (clear inside measurement): for the standard base model, 600–750 mm.
-
Note: for high-board or tall unit versions, heights up to ~1,250 mm are supported.
-
-
Door widths accommodated: 400 mm, 450 mm, 500 mm or 600 mm.
-
Minimum inside cabinet width & depth:
-
Width: from approx. 860 mm (for the 450 mm door variant) upwards depending on door size.
-
Depth: minimum 500 mm.
-
Colour & Finish Options
The LeMans II system is available in various design finishes to match your kitchen aesthetic:
-

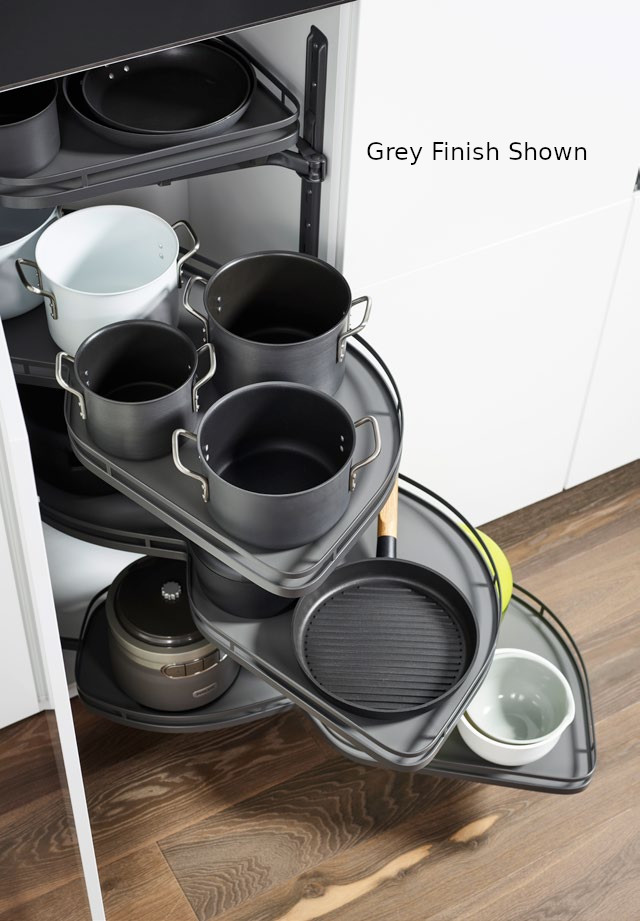

Gallery rail in Chrome or Silver with base tray of Ice White or Grey = Arena Classic finish.
-
Gallery rail in Chrome with tray base Ice White = Arena Style.
-
All components in full Anthracite = Arena Pure finish (gallery rail and tray base both Anthracite).
-
Typical combinations include: Chrome/Ice White, Chrome/Grey, Silver/Ice White, Silver/Grey, Anthracite/Anthracite.
Why Choose LeMans II?
Standard corner cabinets notoriously hide items in the far back. The LeMans II Right-Handed Swivel system transforms that ‘dead’ space into fully accessible, organised storage. With award-winning design and a smooth, ergonomic motion, it’s a premium upgrade that blends seamlessly into modern kitchen cabinetry.
