Description

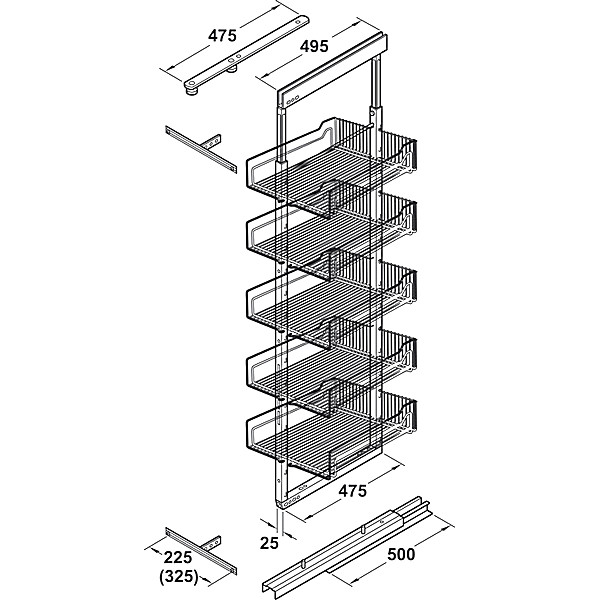

Adjustable Height 1600mm to 2000mm.
To suit modular carcases 300mm or 400mm

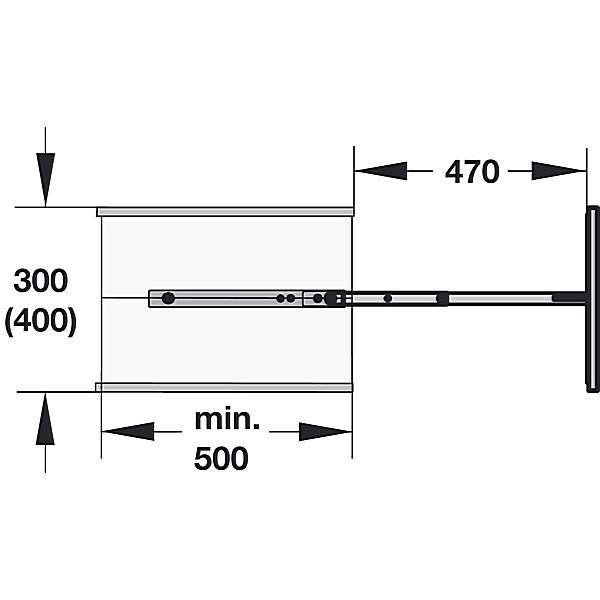

Minimum Cabinet Internal Width 268mm. Minimum Cabinet Internal Height 1650mm. Minimum Cabinet Internal Depth 500mm.
Extra heavy duty full-extension slides. Five way door adjustment bracket. Suggested loading 90kg Total.
*Maximum weight capacity of 90kg (including mechanism and door panel)
Features
Height adjustable frame Full extension 70kg runner with optional SoftStopp damper
Material Steel
Finish Powder coated silver frame and runner
Load capacity 70kg
Internal cabinet height 1600 – 2000
Note *Maximum weight capacity of 90kg (including mechanism and door panel)
Supplied with
1 hanging frame
1 bottom runner
1 top runner
1 set of front brackets
1 front stabiliser

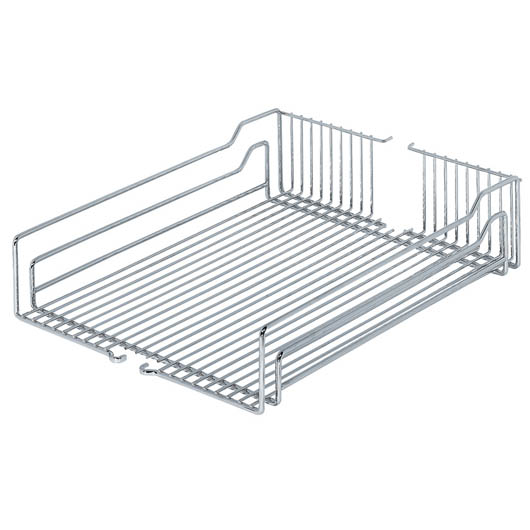

5 baskets
1 set of installation instructions
Installation Instructions Click Here
Does not include carcase or door
