Description

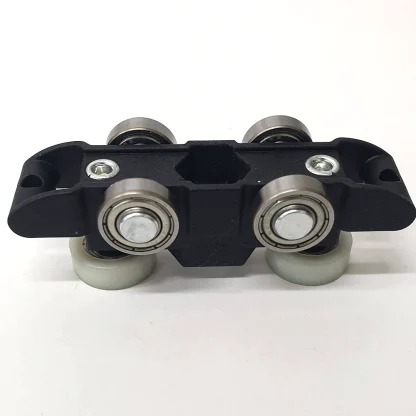

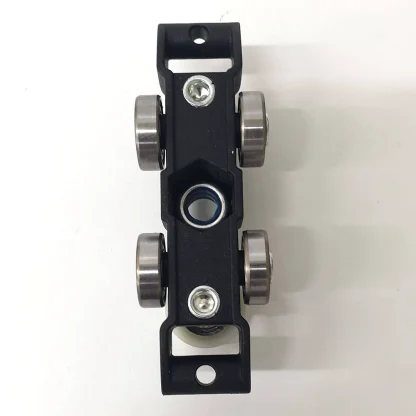

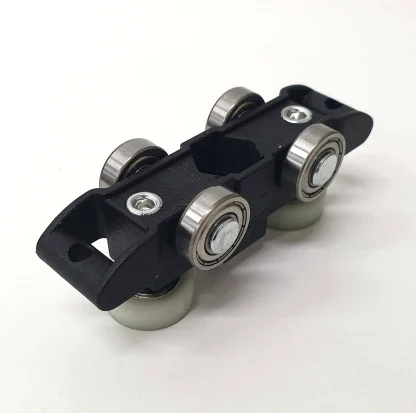

Nylon Sliding Door Roller Roller for Sliding Door ONLY.
You will need to add the COWNX081ZP quick fit bracket.
Glass Filled Nylon 66 Main Body.
Hardened Tool Steel cartridge bearings S625ZZ with metal shielding. (N.B. Bearing axles are nickel plated steel)

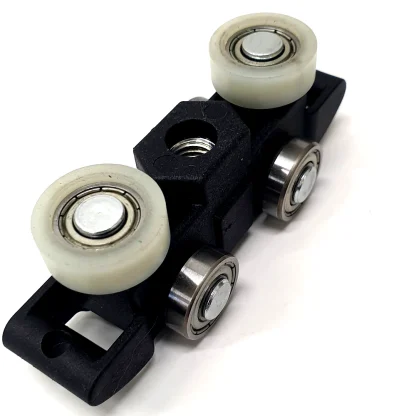

Vertical axis guide rollers use S605ZZ cartridge bearings with Acetal tyres.

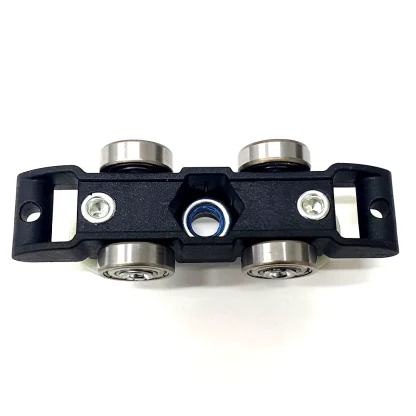

A captive M8 nut is used to connect to the COWNX081ZP Quick fix bracket.

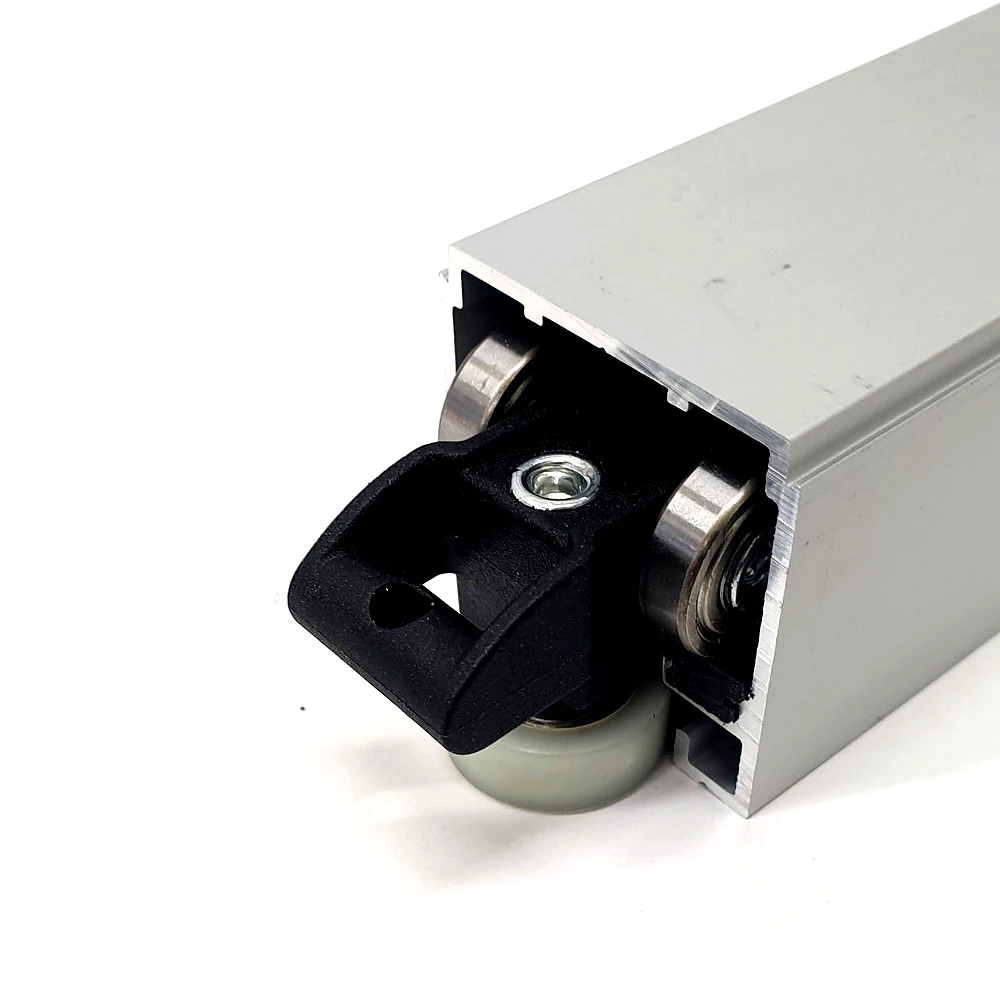

The Bearing Wheels run on high density glass filled polymer “rails” that are part of the innovative design corrosion resistant aluminium track.
Extra Dimensional information
Roller:-
- Outside of wheel to outside of wheel 28.5mm
- Wheel Outside Diameter 15.9mm
- Wheel Width 5mm
- Carriage Width 18.2mm at maximum width
- Axle Centres 30mm
- Overall Length 82mm
- Guide Roller Dia 19mm
- Body Fixing M8 Stainless Nyloc
Load capacity of 80kg per pair of wheelset.
Images are for illustrative purposes. Track is not included and must be purchased separately.
