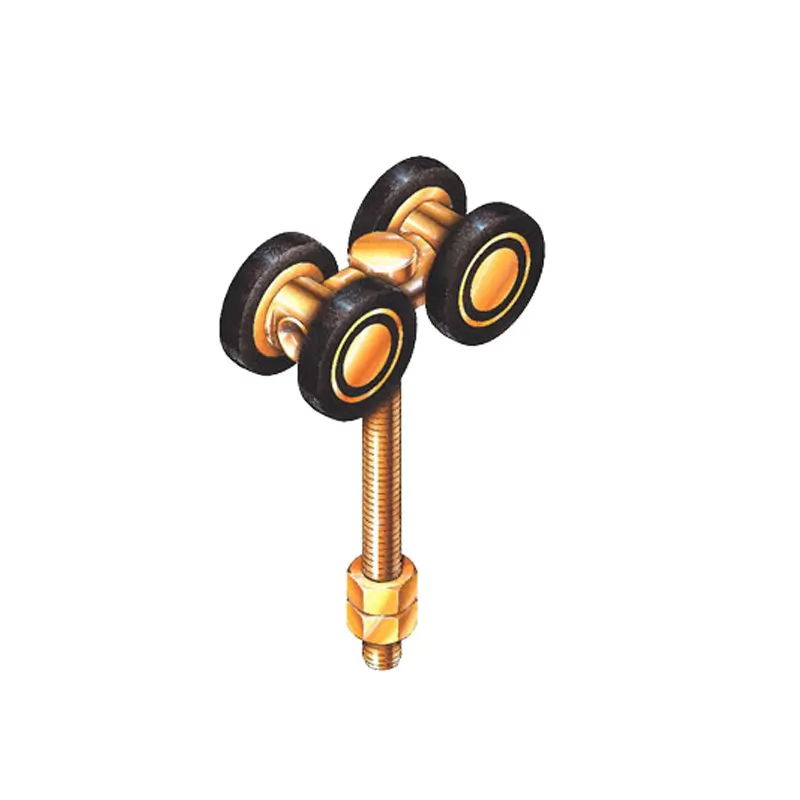

Round Corner Door Track Roller. Eltrak EH14M. Short Body

$166.00

Round Corner Door Track Roller. Eltrak EH14M
For Round Corner and Bi-Fold application

Super smooth nylon wheels provide long life in difficult environments such as dust prone areas.

$297.00
SKU: ELEH14M Category: Tag:

Description

Short Body for Round corner and Bi-Fold application

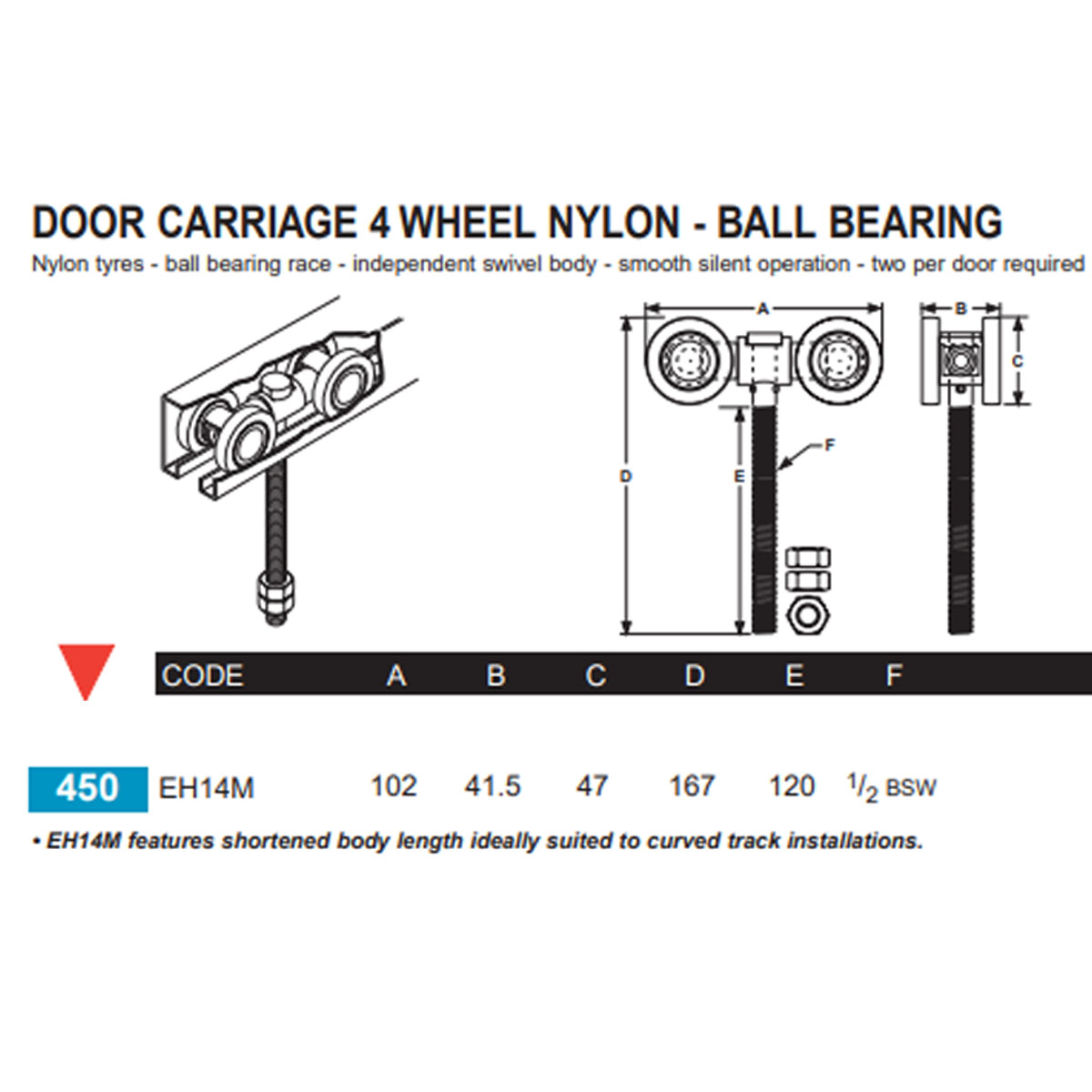

Hercules Series Eltrak Four Wheel Nylon Swivel Carriage for Heavy Industrial Sliding doors to 450KG
Full Independent Swivel Body
Ball Bearing Race

Thread is 1/2″ BSW x 120mm long
Use the two nuts to adjust the height of the door and allow the door to be levelled.
The EH37 Top Plate adjuster can e used with doors that have both sides of the door covered and provide adjustment and easy installation.

Four Nylon Wheels.
Nylon is incredibly tough and has excellent abrasion resistance which makes it perfect for long life rollers as well as providing a smooth rolling action

2 Per Door Required
Two roller sets per door will ensure that the weight of your door will be carried evenly.

Max 650kg Door

Link to OEM product page
Link to Track Page.

Additional information

Weight.725 kg
Dimensions165 × 120 × 80 mm
Colour

Form

Brand

Range

Capacity
