Description

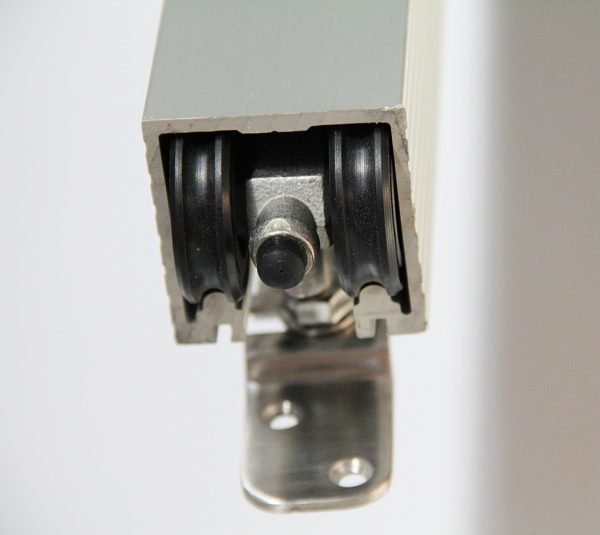

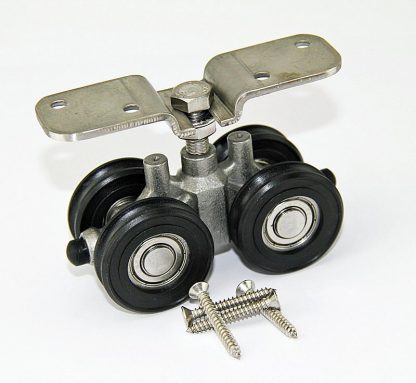

All Weather Wheel Assembly with Top Hanger Bracket.
Stainless Steel (316) construction and screws.
Accurate and super smooth engineering grade nylon tyres for fuss free service life. Suitable for all agricultural and horticultural applications.
Load capacity of 240kg per pair of wheelsets.
Extra Dimensional information
Roller:-
- Outside of wheel to outside of wheel 44mm
- Wheel Outside Diameter 38mm
- Wheel Width 10.2mm
- Centre to Centre 30mm
- Axle Centres 48mm
Plate:-
-
- Overall Length 100mm
- Overall Width 30mm
- Hole Diameter 5mm
Click here to download the AllWeather product brochure.
Click here for OEM product page.

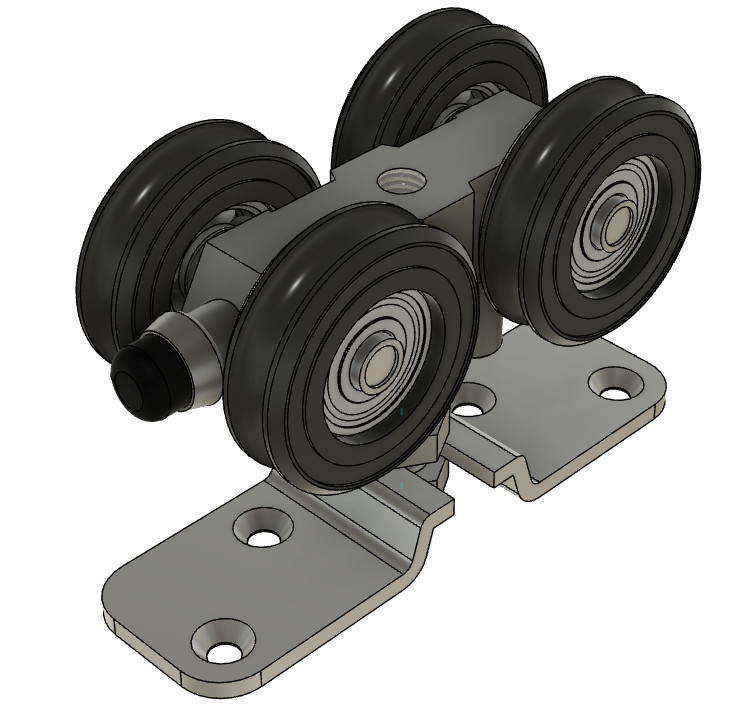

Click here to download a 3D (stl) file
The Allweather AW83100 Stainless Sliding Door Roller is a high-quality, durable solution for your sliding door needs.
Made from corrosion-resistant stainless steel, this roller is built to withstand the elements and provide smooth, reliable operation for years to come.
The roller features a 1-1/4 inch diameter wheels with a 7/8 inch width, making it suitable for use on doors up to 200kg in weight.
It also has a non-handed design, meaning it can be used on either the left or right side of your sliding door.
Whether you’re installing a new door or looking to replace old, worn out rollers, the Allweather AW83100 is the perfect choice. Its sleek, modern design and superior performance make it an excellent addition to any home or business.
