Description

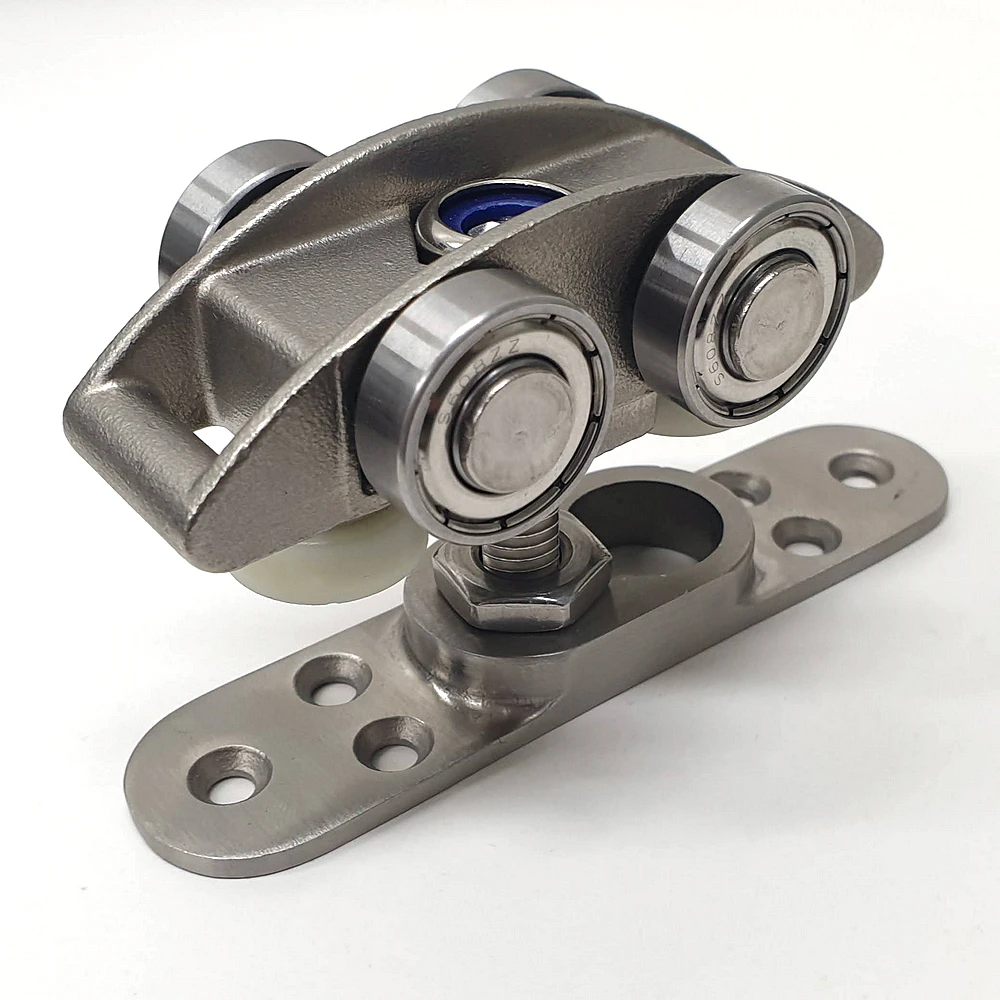

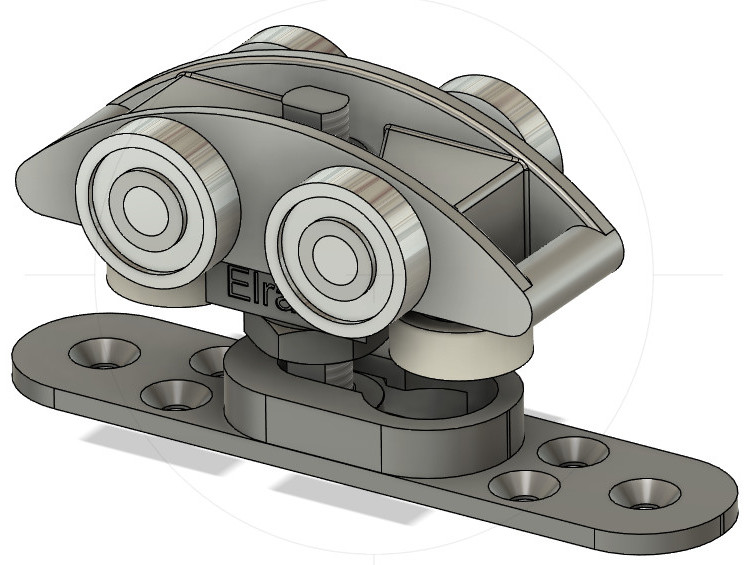

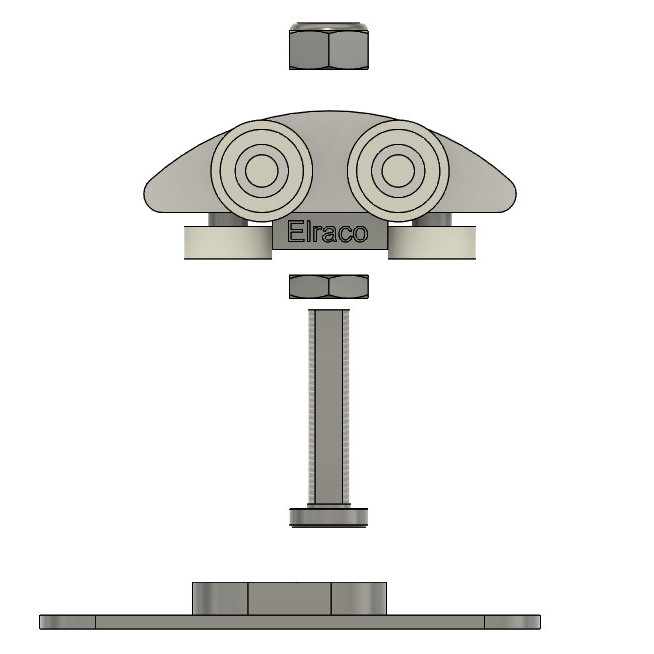

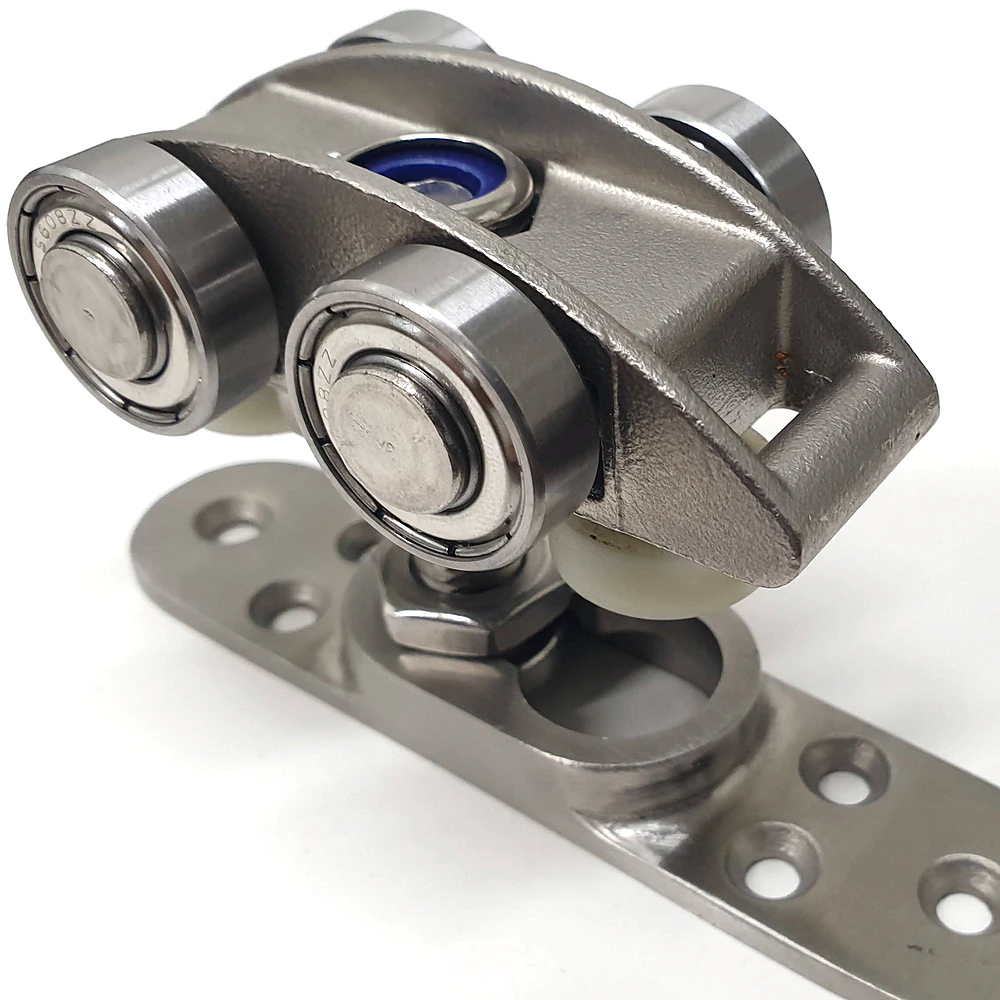

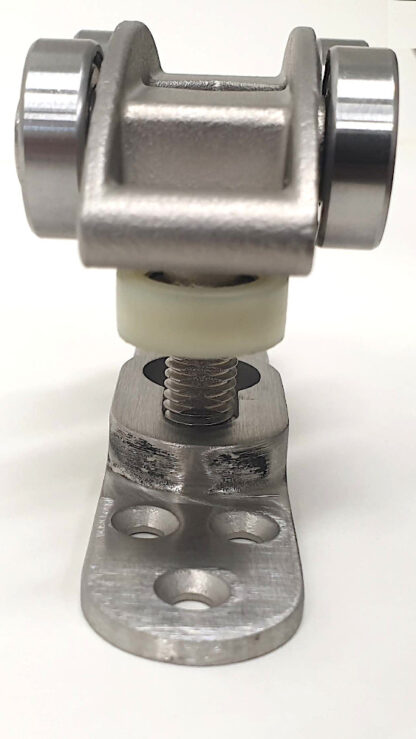

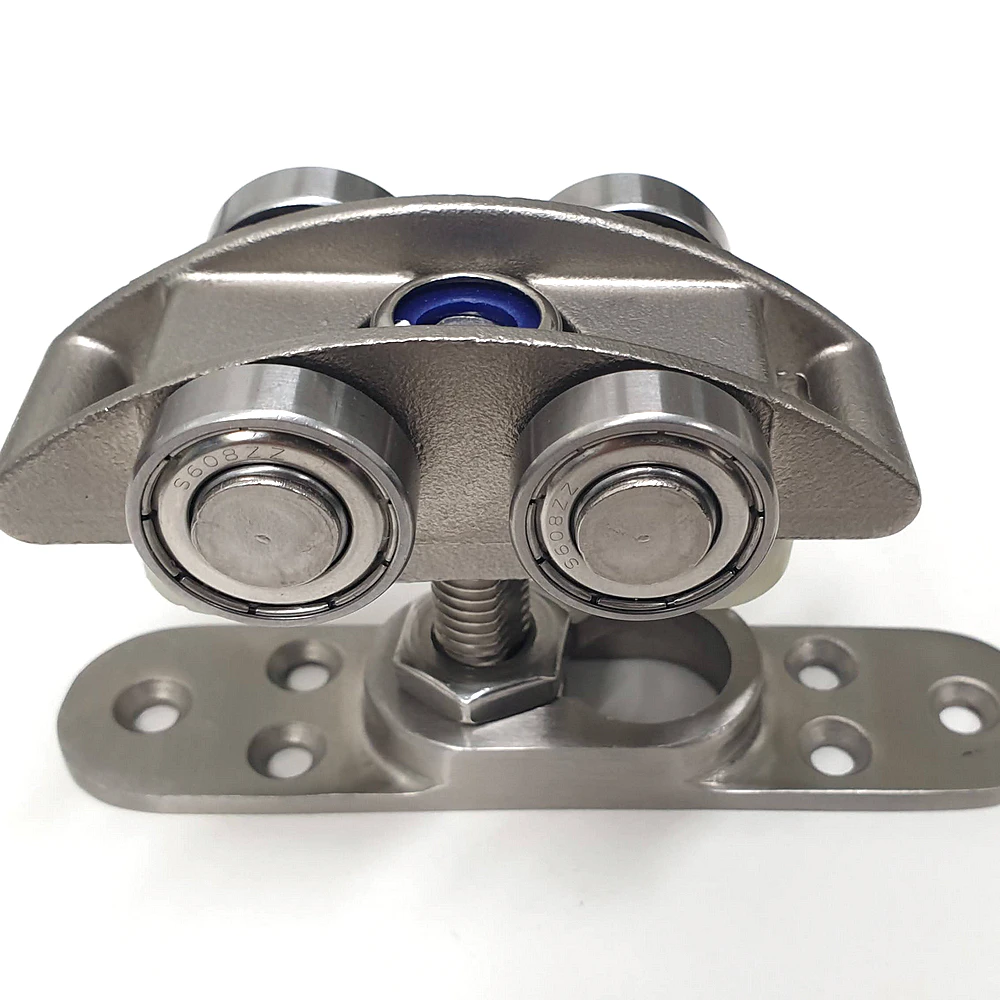

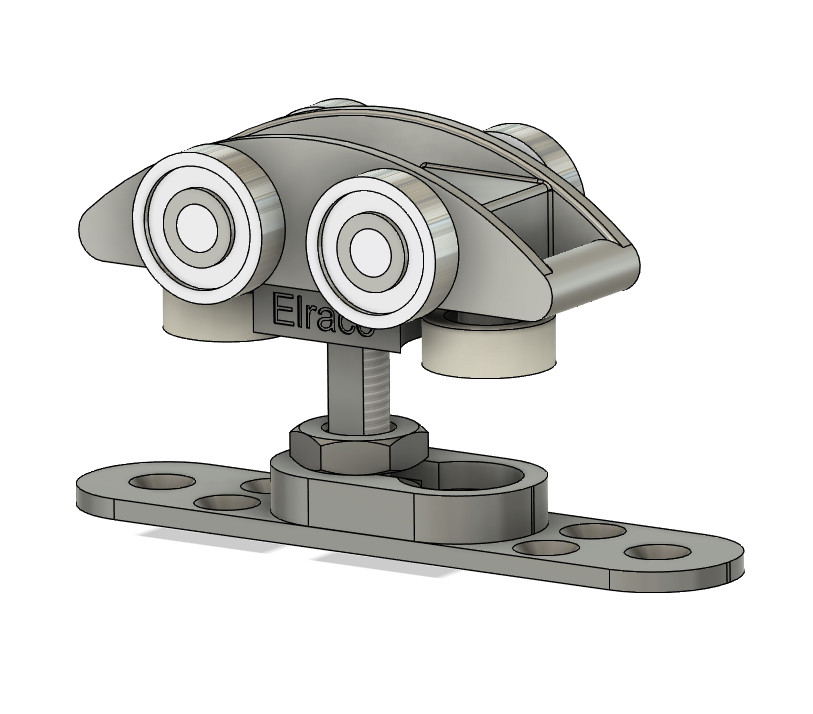

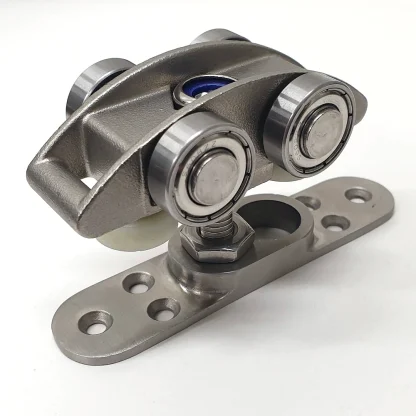

All Weather Stainless Steel Roller for Sliding Door with Top Hanger Bracket.
Stainless Steel Main Body, Mounting Bracket and connecting hardware.
Hardened Tool Steel cartridge bearings S608Z with metal shielding. (N.B. Bearing axles are nickel plated steel)

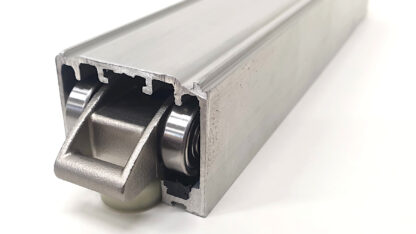

The Bearing Wheels run on high density polymer “rails” that are part of the innovative design corrosion resistant aluminium track. Link here to the Track
Load capacity of 350kg per pair of wheelsets.
Extra Dimensional information
Roller:-
- Outside of wheel to outside of wheel 38.5mm
- Wheel Outside Diameter 22mm
- Wheel Width 8mm
- Carriage Width 39mm
- Axle Centres 30mm
- Overall Length 80.5mm
Plate:-
- Overall Length 107mm
- Overall Width 25mm
- Mounting Holes 6 (Stainless Steel Screws included)
Link here for dimensional information.
Click here to download the AllWeather product brochure. (Not up to date)
The Allweather NXS350SS Stainless Sliding Door Roller is a high-quality, durable solution for your sliding door needs.
Made from corrosion-resistant stainless steel, this roller is built to withstand the elements and provide smooth, reliable operation for years to come.
The roller features four S608Z cartridge bearing wheels, making it suitable for use on doors up to 350kg in weight.
It also has a non-handed design, meaning it can be used on either the left or right side of your sliding door.
Whether you’re installing a new door or looking to replace old, worn out rollers, the Allweather NXS350SS is the perfect choice.
Its low profile, innovative design and superior performance make it an excellent addition to any home or business.
Images are for illustrative purposes. Track is not included and must be purchased separately.
