Round Corner Door Track Hardware
For Sliding Doors with curved track for doors up to 100kg. Useful for doors or walls that need to slide away.
Click on images for more information.
| Maximums per Door Leaf Height Width Thickness Weight | 3600mm 900mm 45-55mm 80kg |

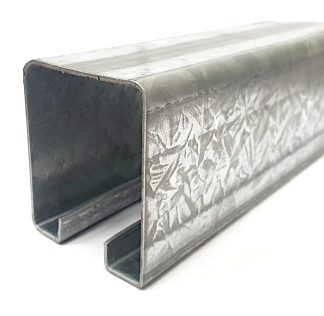

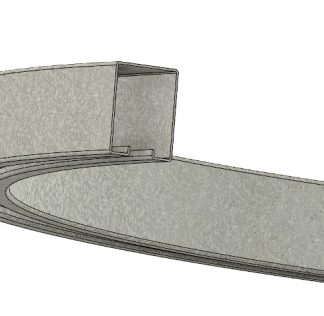

Tracks.

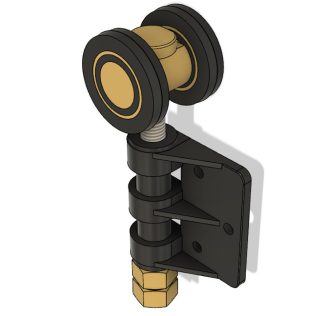

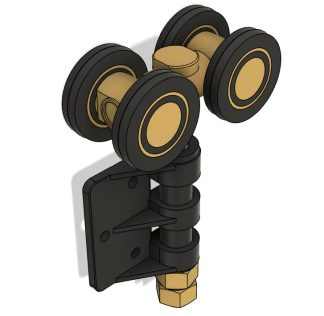

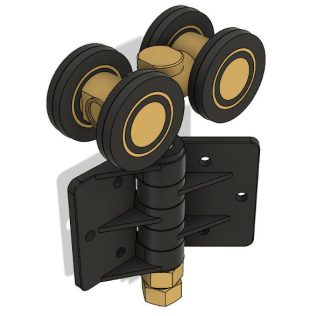

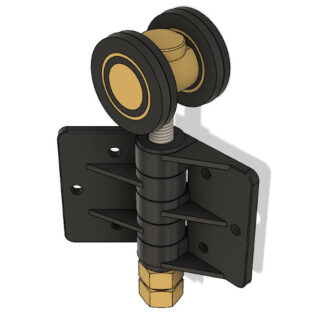

Rollers that suit the tracks above.

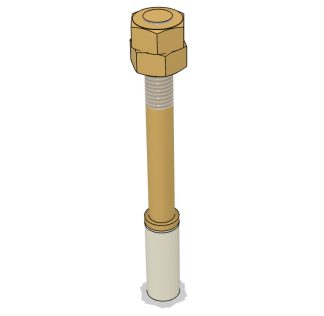

Door guide for sliding doors listed below.

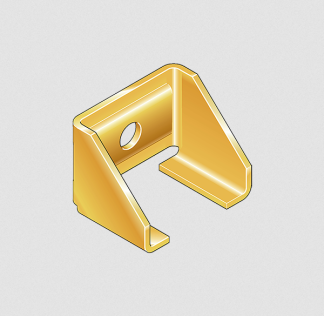

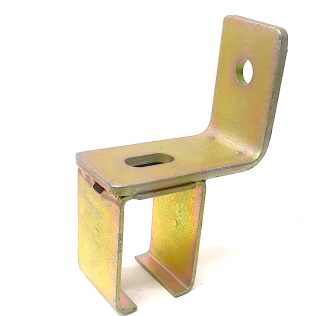

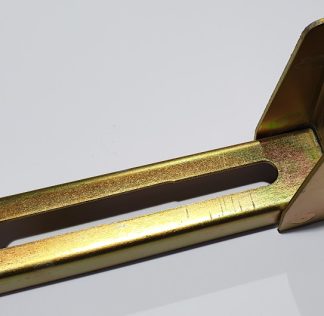

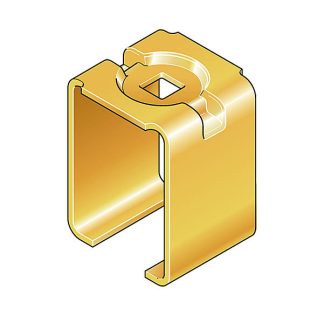

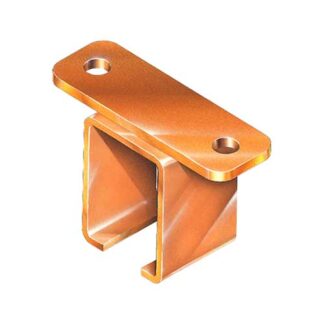

Brackets to support and fix the tracks to walls.
INSTALLATION HINTS:
For best results a when using round corner door track hardware, a maximum of eight door leaves should be used in any one unit. Swinging access doors are obtained by using an odd number of door leaves in an end unit if under 3000mm in height. Doors over 3000mm high should have an independent door leaf hung separately for swinging access.
For Face-Fix (side-fix) installations, a packing batten may be required to provide adequate operating clearance between door leaves and main structure. Floor guide channels must be installed with centres in exact alignment with centre of top track.

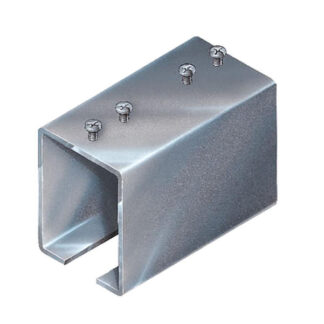

The top track must be level, and support brackets spaced at maximum 900mm centres must be securely fixed. Use extra support brackets at track joins or where door leaves are stacked in open position.
OEM Webpage Link Here
RECOMMENDATIONS:
DO NOT grease tracks. Grease will trap dirt and wear down all components. Image Link here
DO NOT weld tracks as it causes distortion and reduces capacity.
DO NOT exceed recommended maximum door leaf dimensions.
ALL End Support Carriages should be Four Wheel models.
