Description

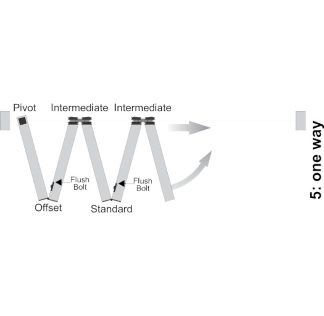

AllWeather Exterior kit for five doors all going one way.
MAWE550
Max. Opening Height (m): 3M
Max. Opening Width (m): 6M
This is a guide only for the bi-fold components, track, guide channel and perimeter seal
Sizing is based on standard 2040x820mm doors.
Some variations occur for taller and wider doors.
No. of doors: 5
Perimeter Seal (m): 37.2
- Complete adjustment capabilities at every hanger and pivot point including a unique lateral adjustment top pivot.
- Stainless steel top hinge roller assembly for strength & corrosion resistance.
- Heavy duty rollers made of engineering polymer for smooth operation.
- D pull stainless steel hinge for easy operation.
- Stainless steel roller guide for added strength & corrosion resistance.
- Flush bolts available in locking & non-locking.
- Main lock single point French door lock with a range of lever designs by single or double leaf.
- Rubber stopper for anti crash of hanger.
- Can carry panel load up to 90kg.
Click here to download the All Weather brochure
